House Plan: DFD-9174

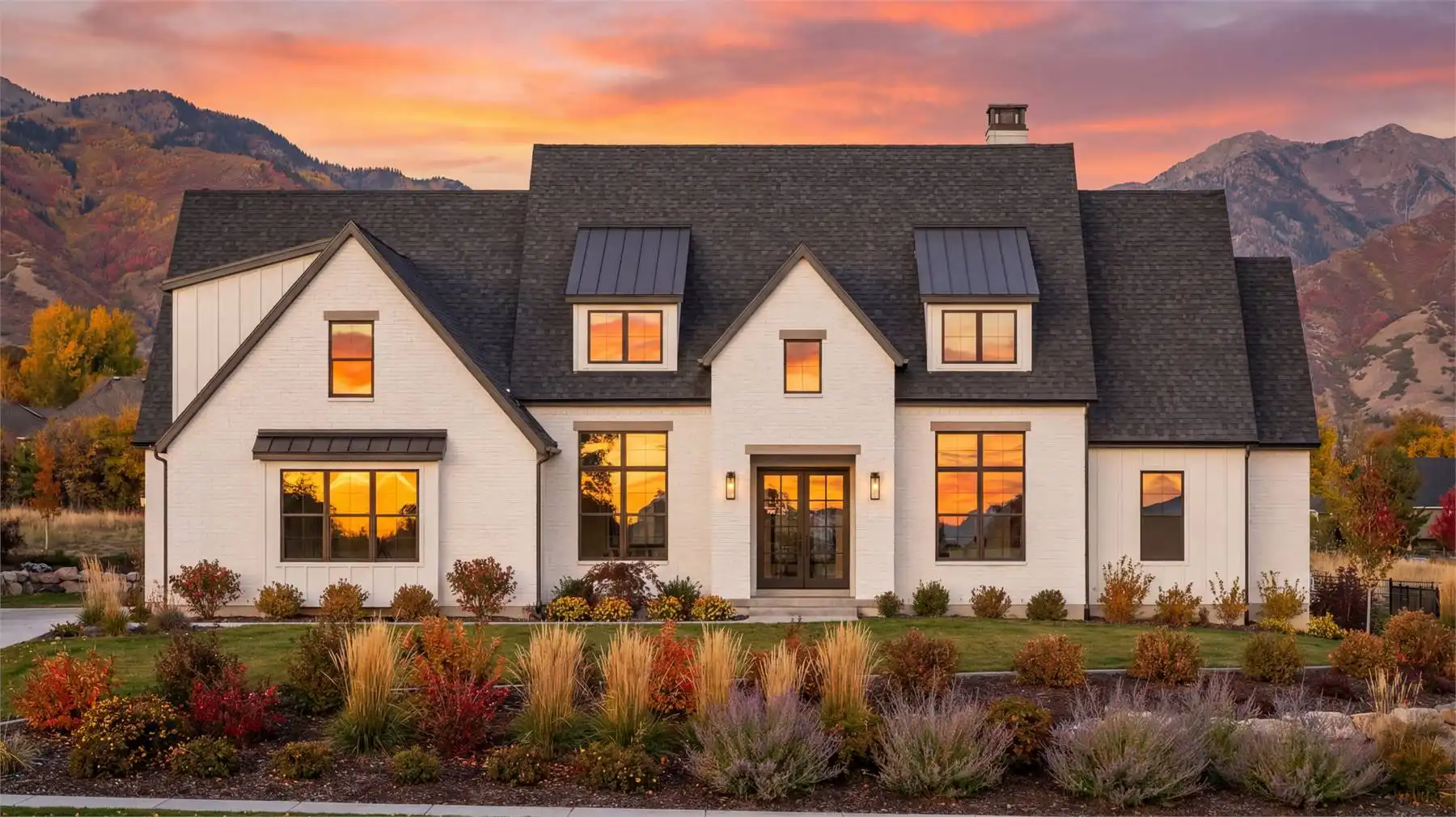

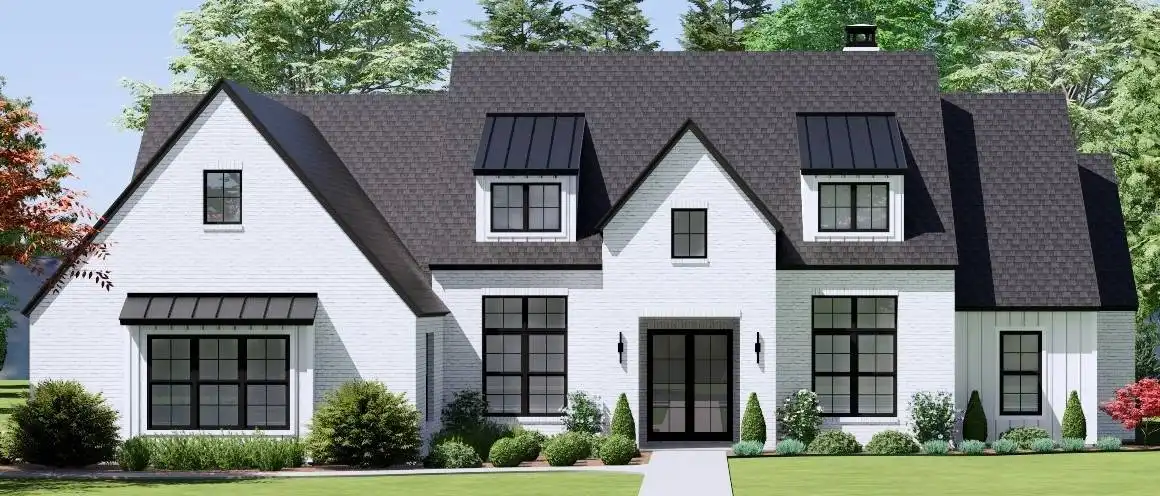

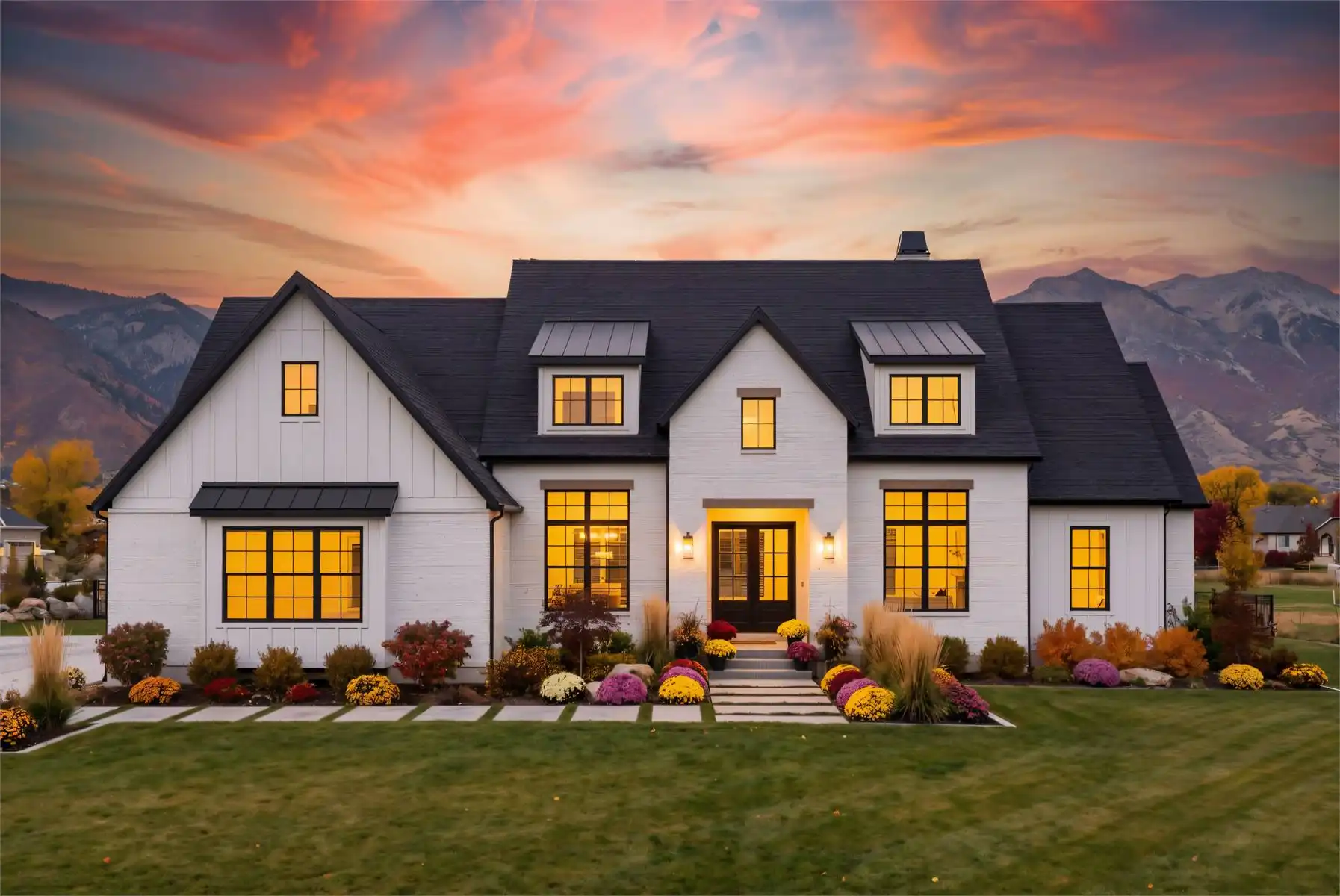

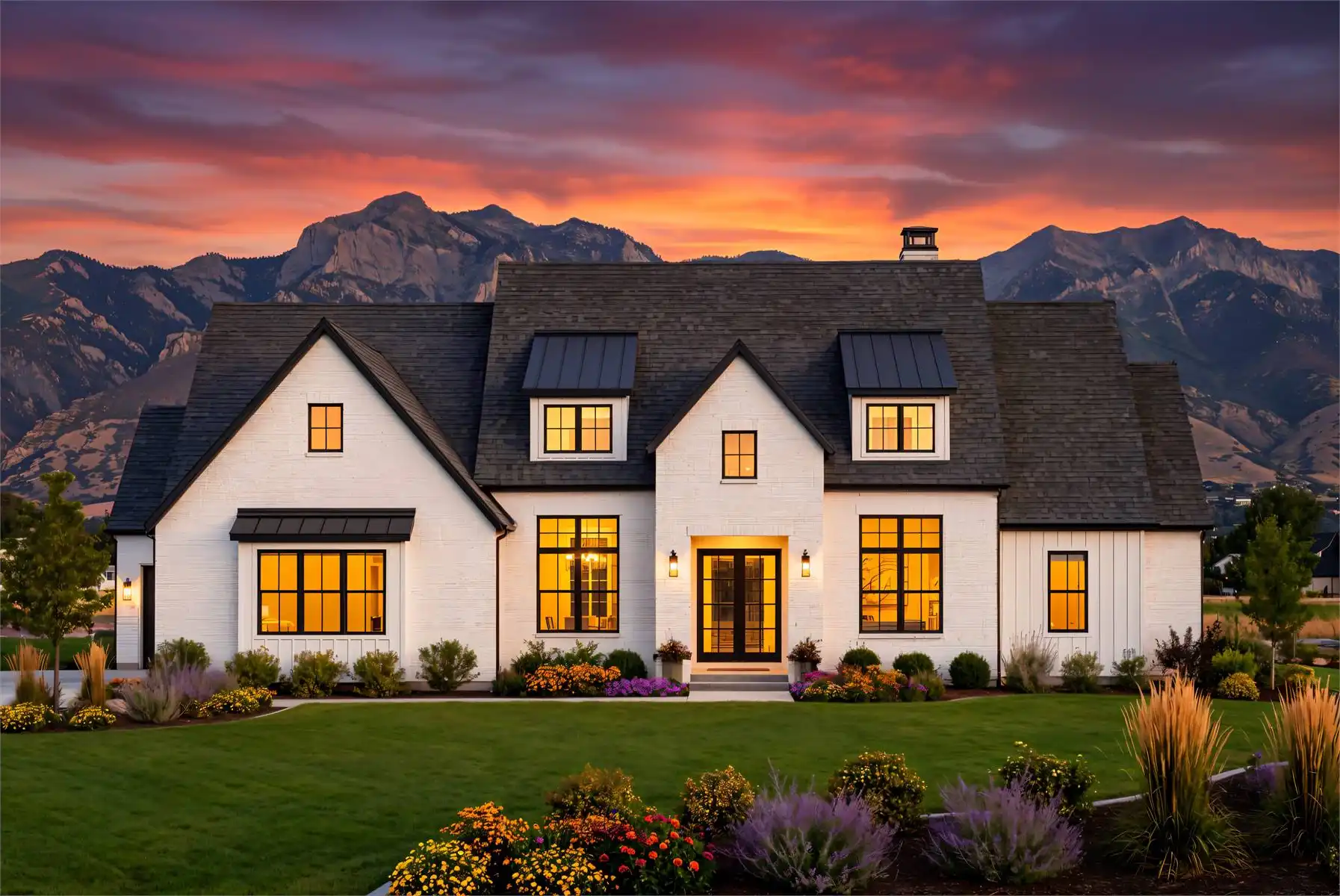

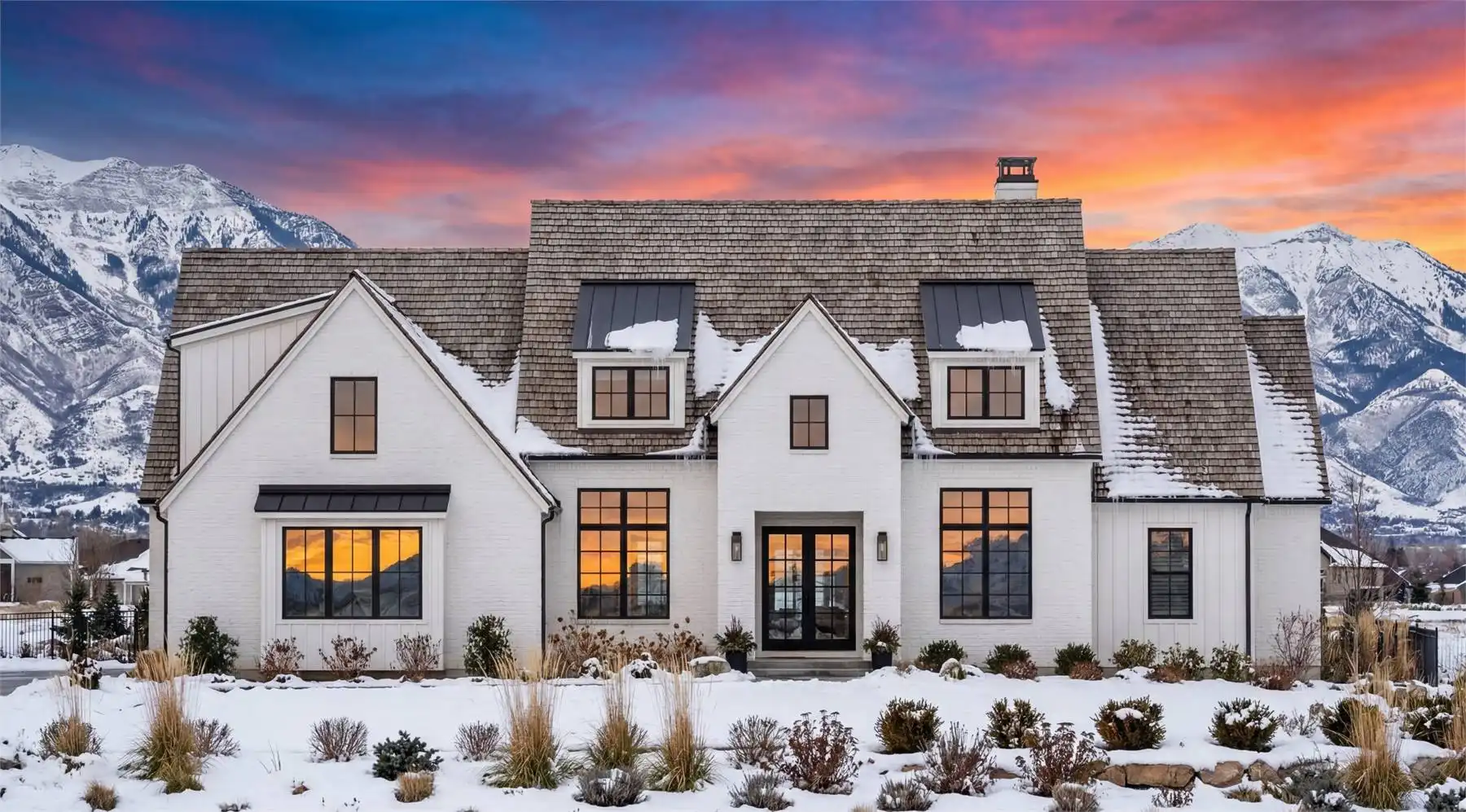

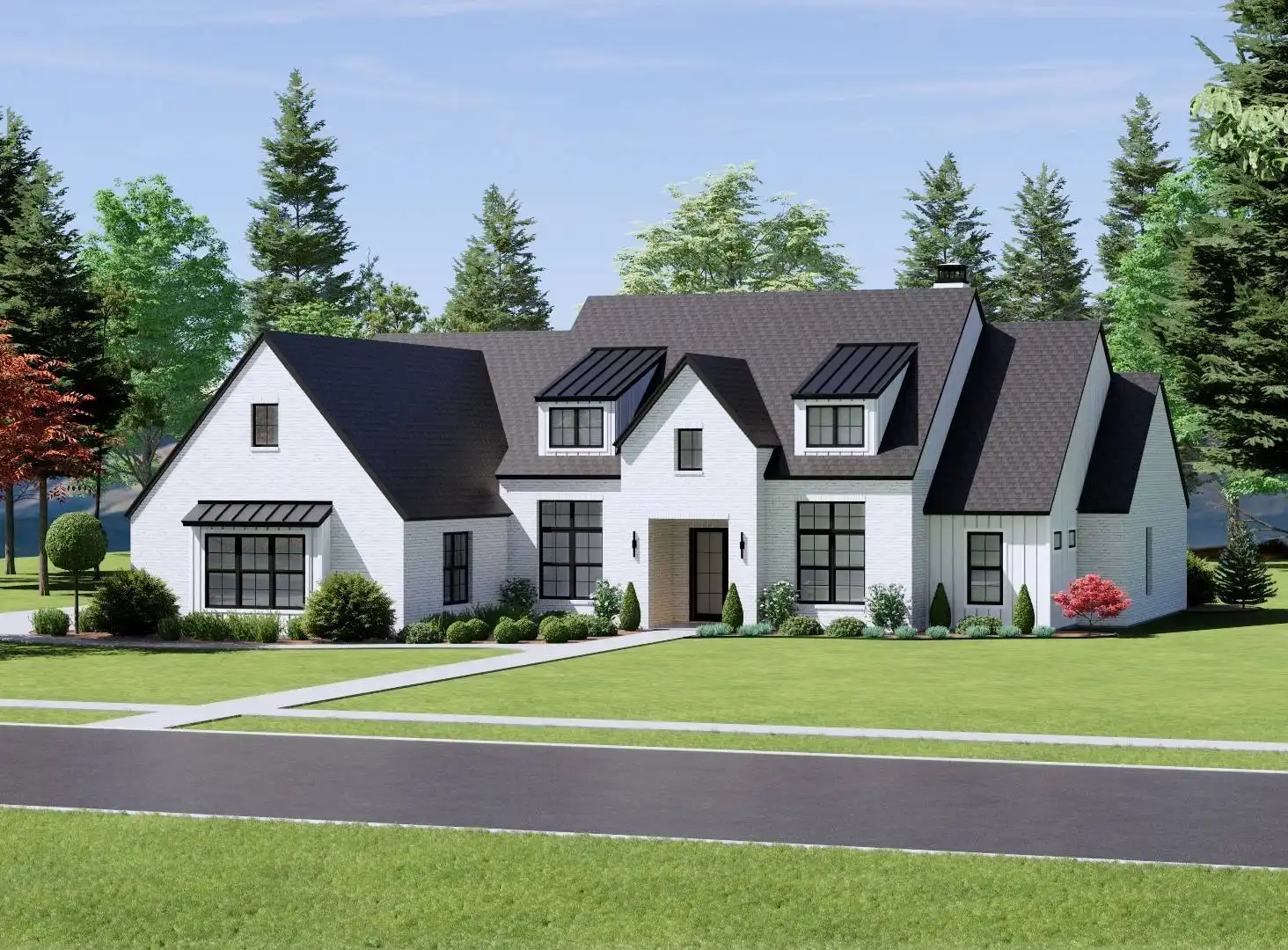

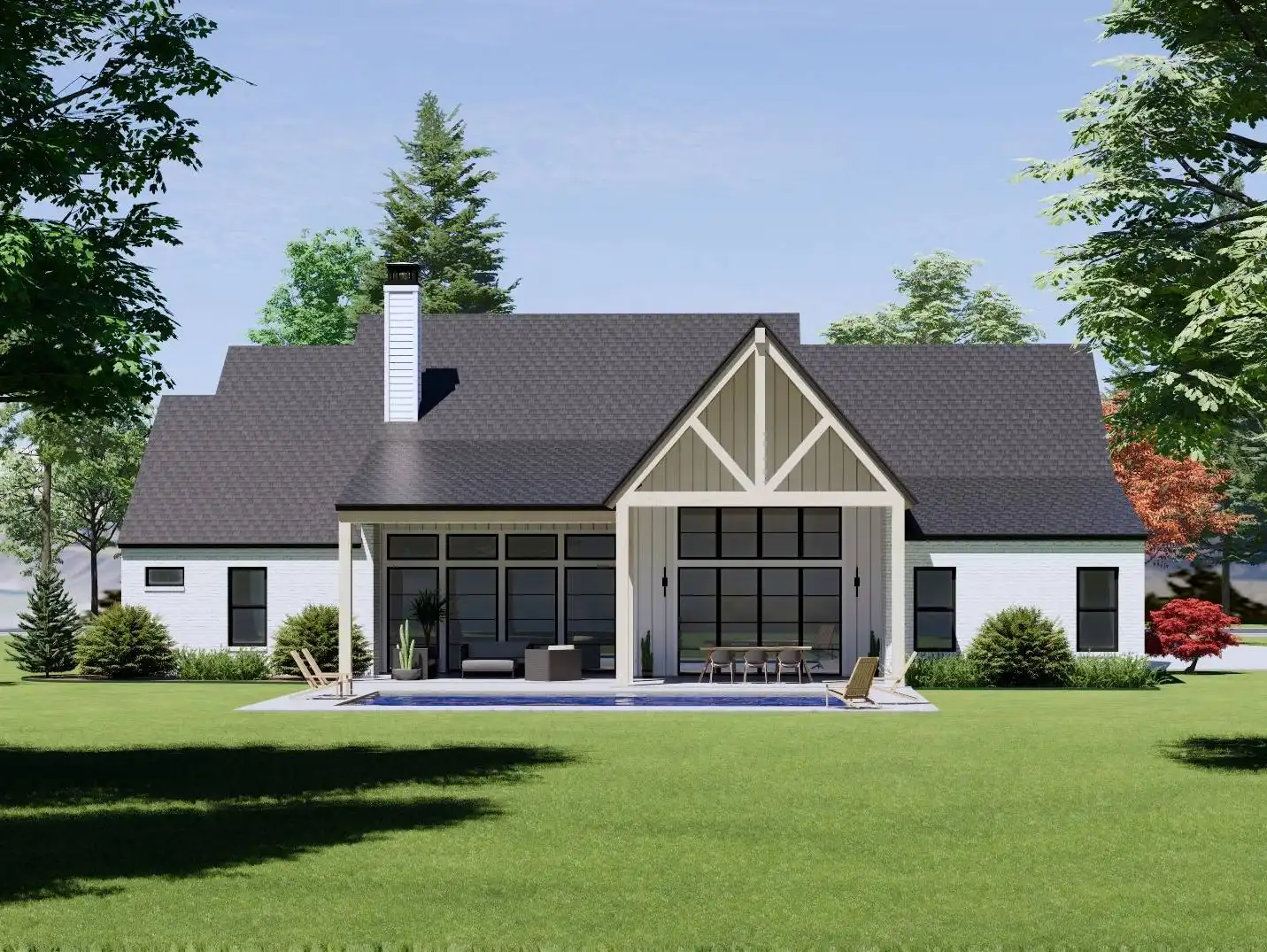

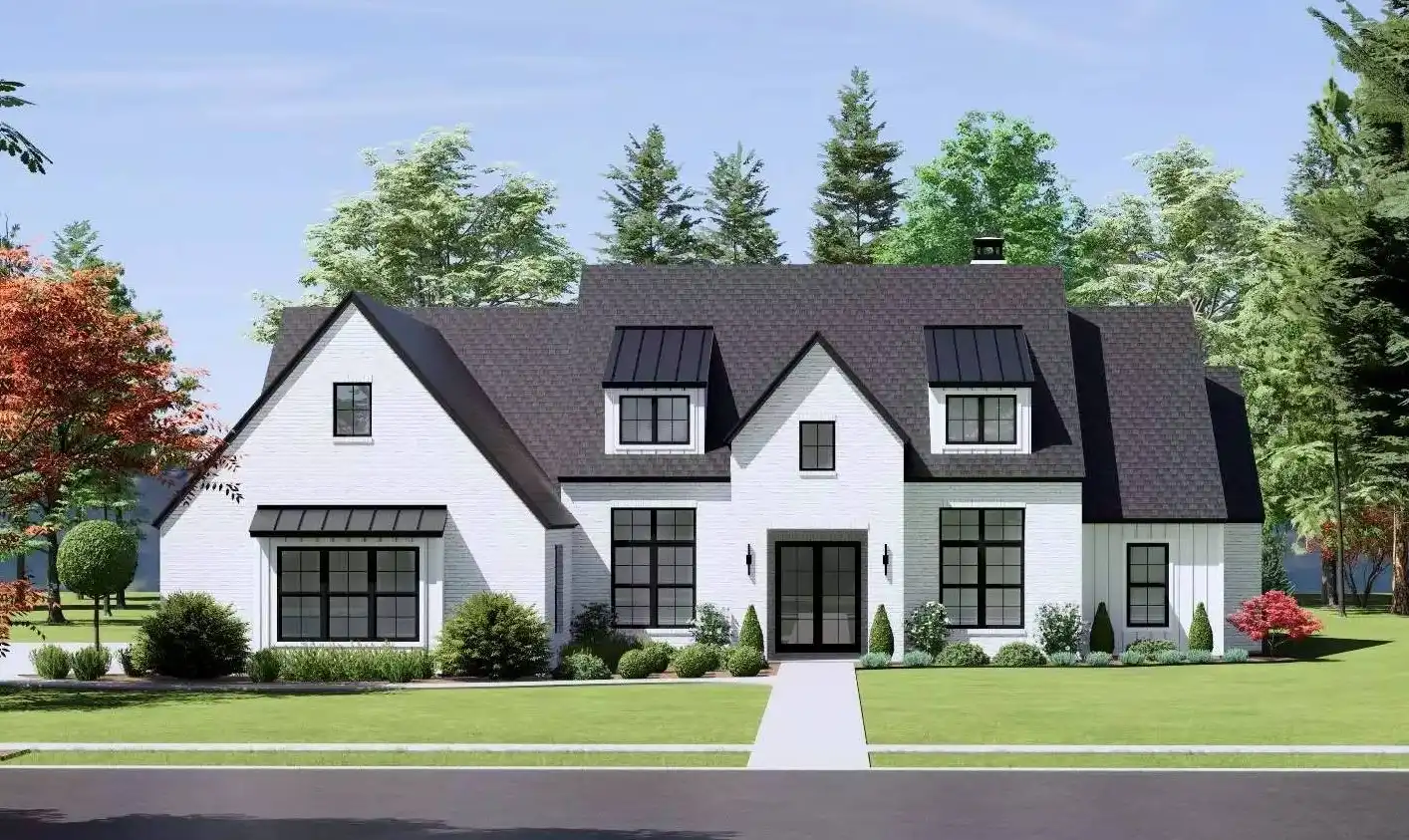

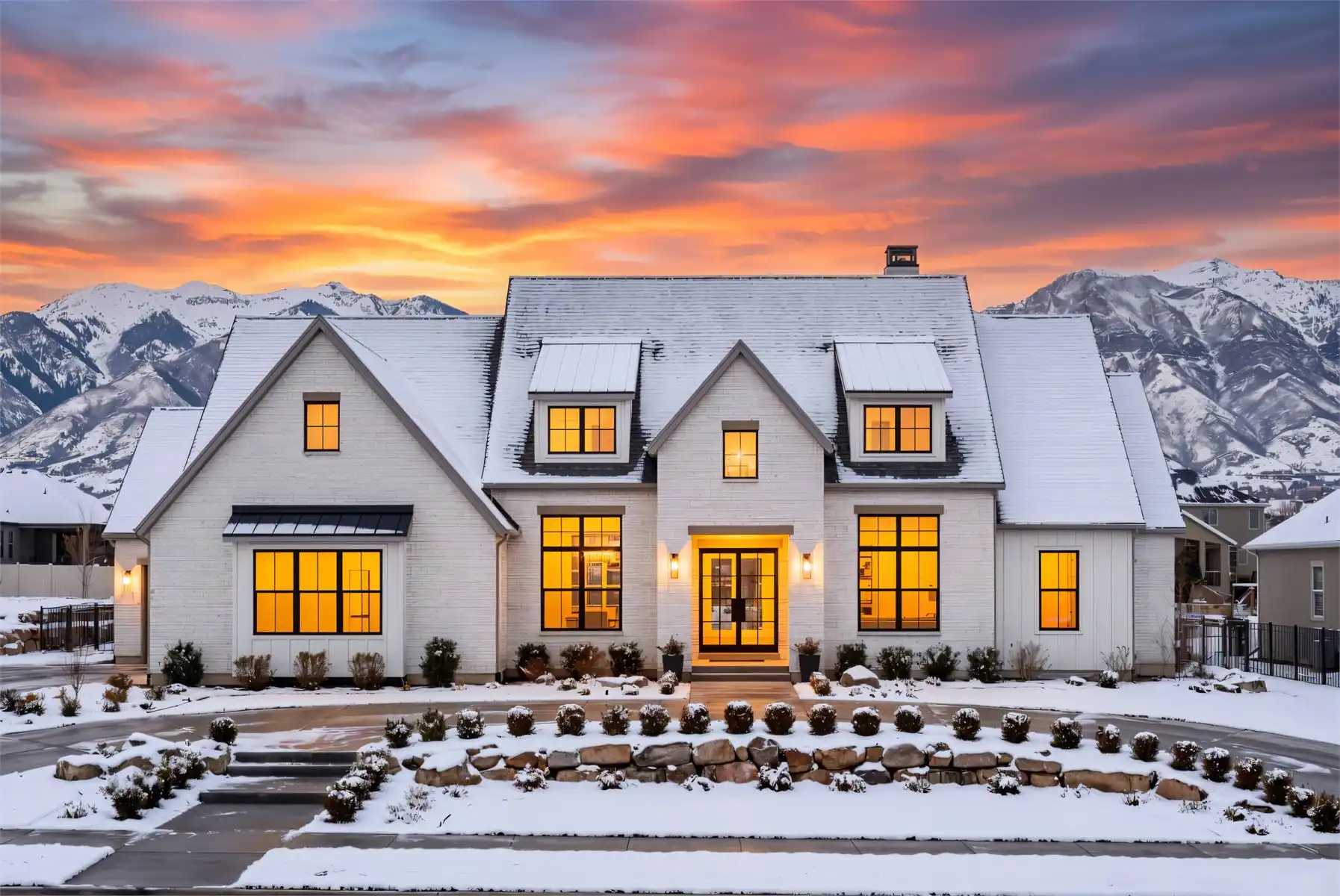

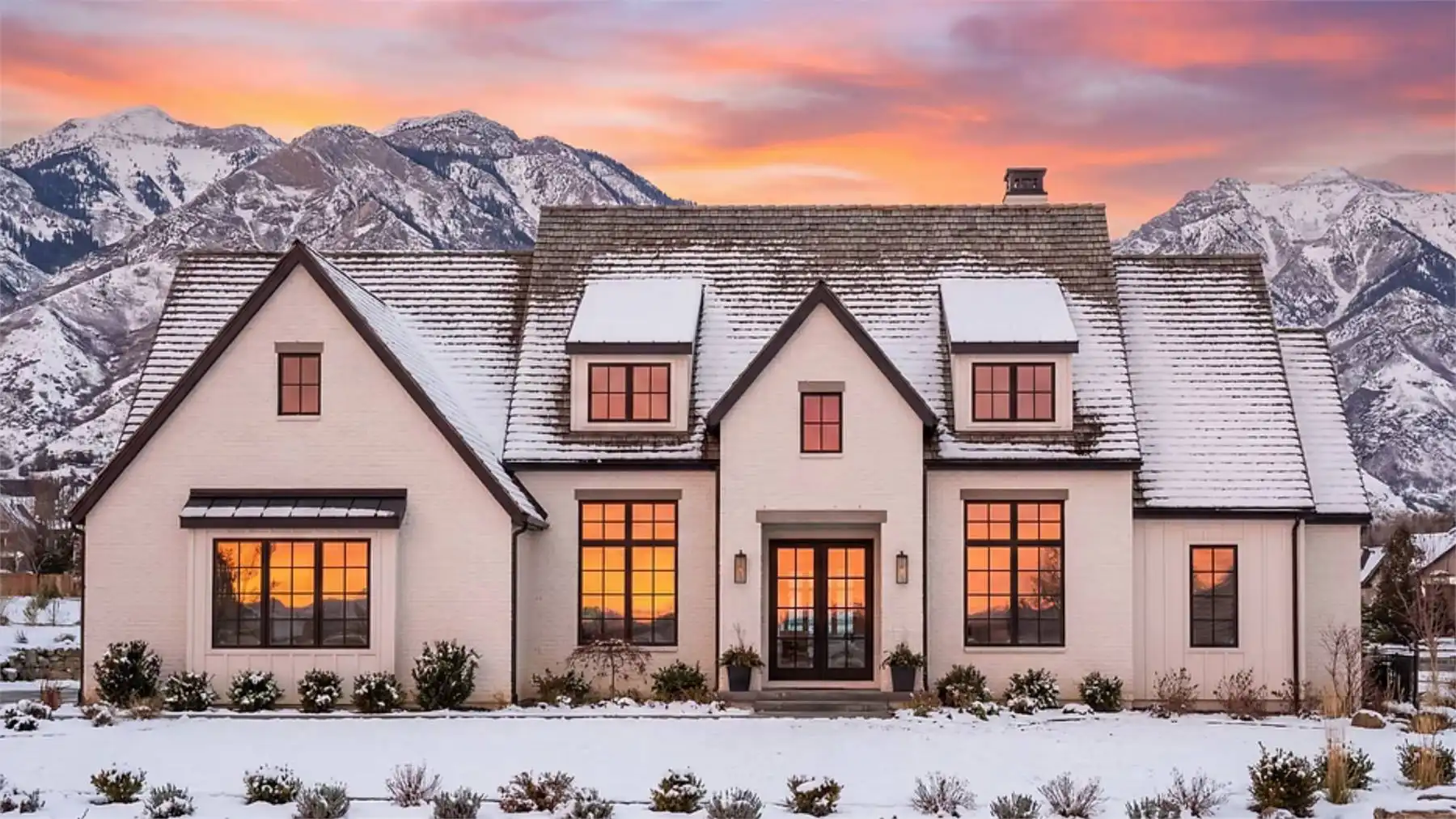

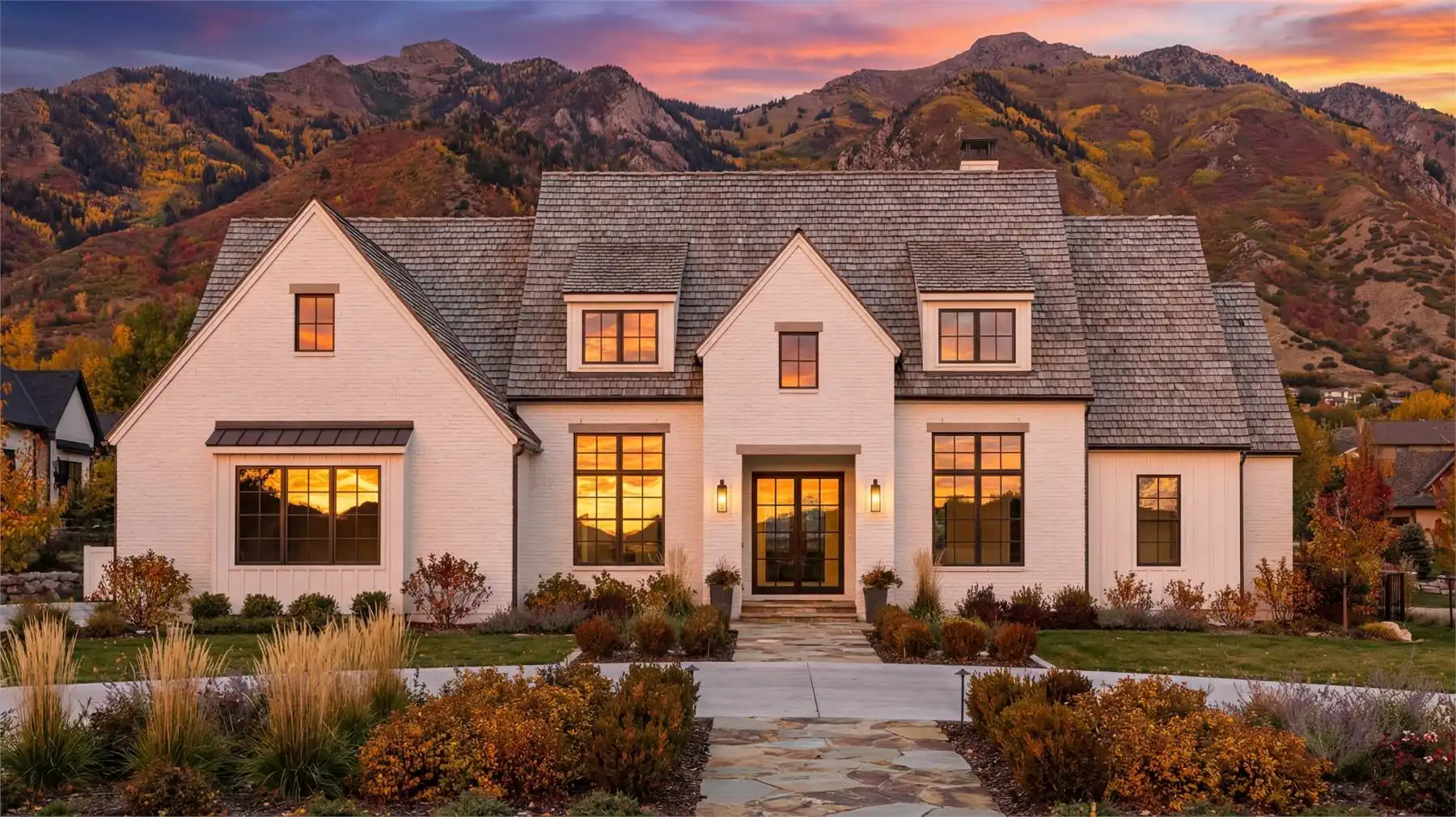

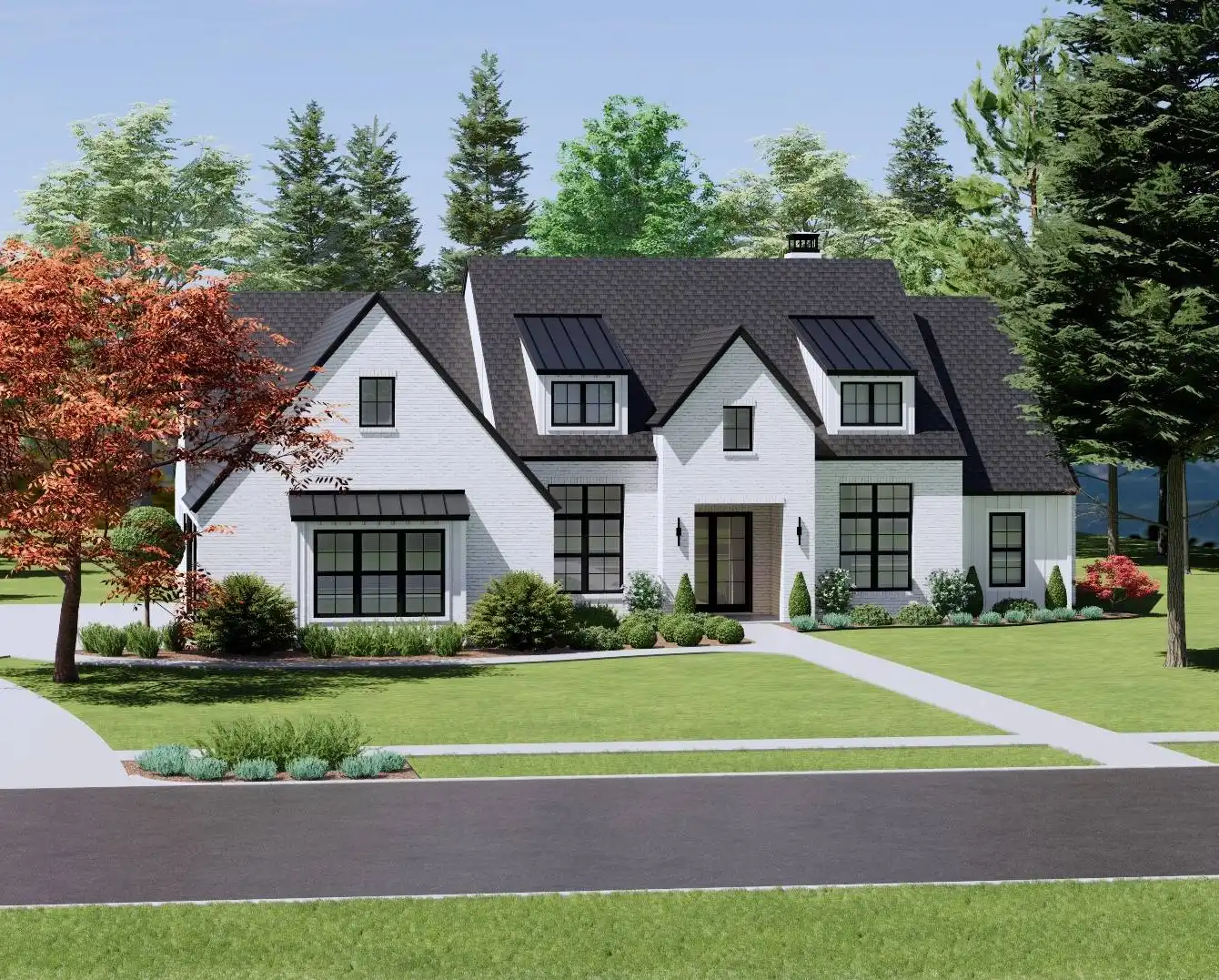

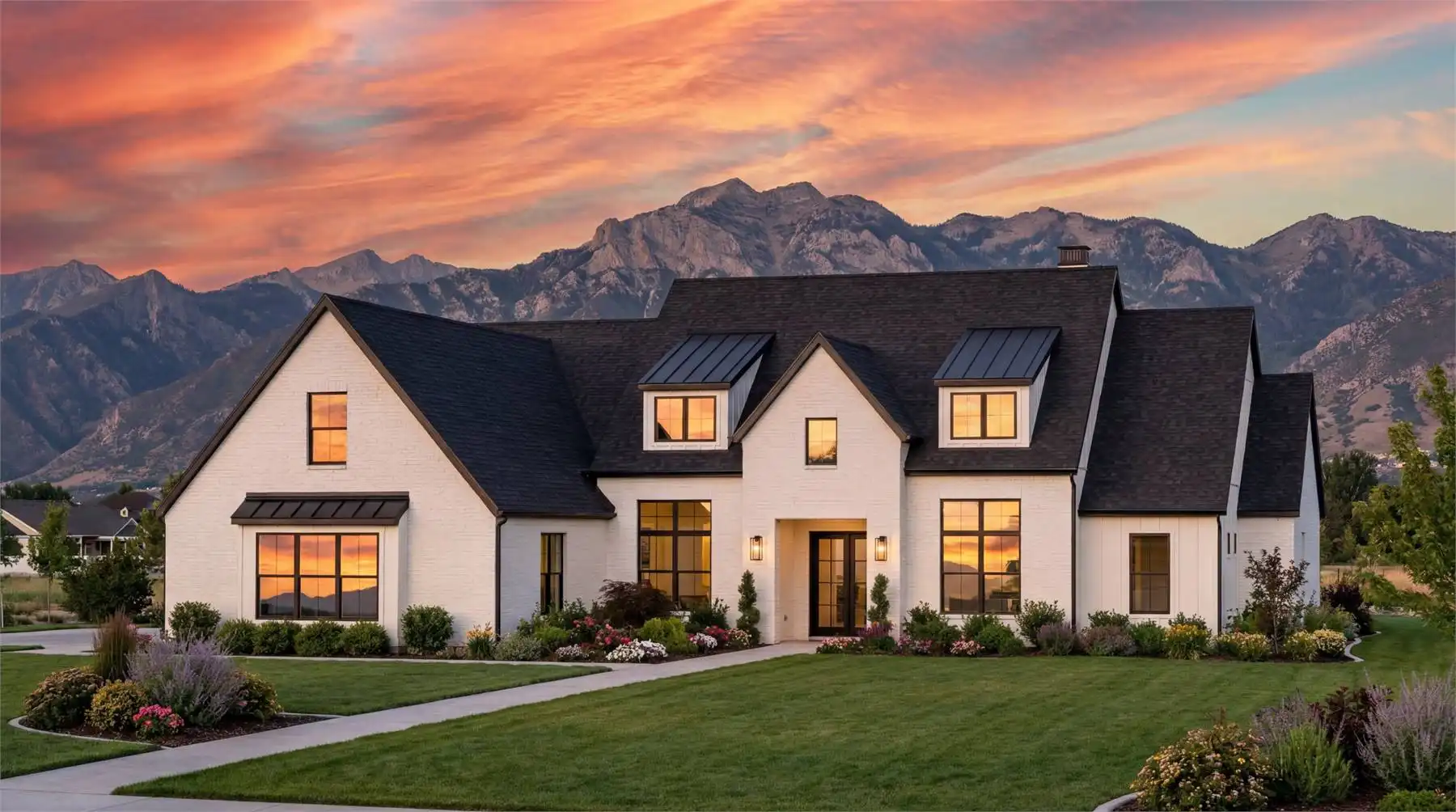

See All 9 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,145
BEDS
4
BATHS
4.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,436.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9174:
See what House Plan 9174 has to offer if you're looking for a spacious ranch with a three-car side-entry garage that preserves its curb appeal. Inside, you'll find 3,145 square feet perfectly appointed between common areas and sleeping quarters. There's an office off the foyer, a family room with a beamed ceiling, and a double island kitchen and dining area beneath a vaulted ceiling in the center of the floor plan. The five-piece primary suite is behind the kitchen while three smaller bedroom suites are on the opposite side of the house. Make sure not to overlook the walk-in pantry, utility room, and mudroom for storage!
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,795
Most recommended package

PDF Unlimited Build


Digital plans with an unlimited build license emailed in PDF format, that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators and more

PDF Unlimited Build $2,495
Digital plans including unlimited build license

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,795
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1795
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,145 Sq. Ft.
Main Level:
3,145 Sq. Ft.
Total:
Room Details
4
Bedrooms:
4
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
74' 9"
Width:
88' 5"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
824 Sq. Ft.
Garage:
80 Sq. Ft.
Front Porch:
605 Sq. Ft.
Rear Porch:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
Country
European
Transitional
Collections
Kitchens
Open Floor Plan
Outdoor Living
Split Bedroom
Texas
Foundation
Basement
Crawlspace
Monolithic Slab
Walkout Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9
Primary:
14
Secondary:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
10
First Floor Ceiling:
29' 2"
Maximum House Height:
Key Features
Arches
Attached
Covered Front Porch
Covered Rear Porch
Dining Room
Double Vanity Sink
Family Room
Fireplace
Foyer
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Separate Tub and Shower
Side-entry
Split Bedrooms
Suited for view lot
U-Shaped
Vaulted Ceilings
Vaulted Kitchen
Walk-in Closet
Walk-in Pantry
