House Plan: DFD-9233

Pin It

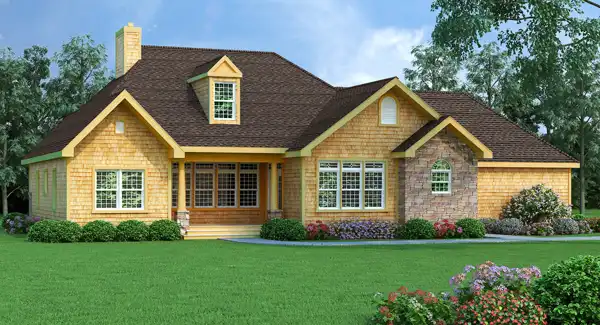

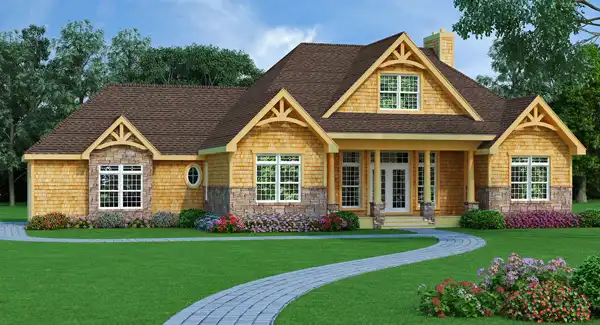

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,826
BEDS
3
BATHS
2.5
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $845.75
For questions and help, live chat, email or call us at 877-895-5299

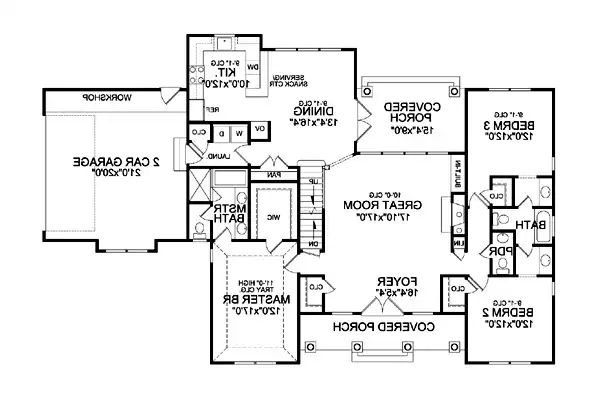

First Floor Plan
Bonus Second Floor Plan

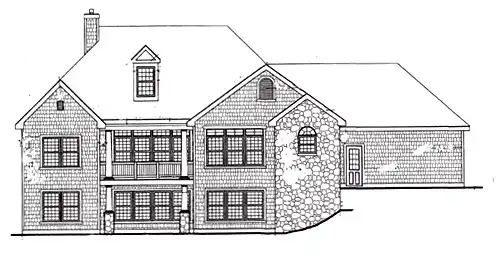

Optional Walk-out Basement Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9233:

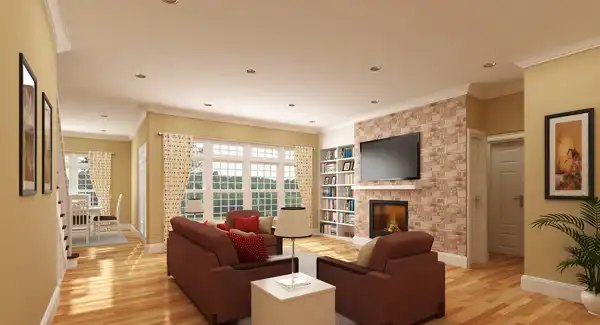

A wonderful floor plan, large great room and charming craftsman exterior are the most notable features of this split bedroom ranch. The central open great room, which is flooded with light from front and rear large windows, includes a 10 foot high ceiling and built-ins on either side of the fireplace. The large gorgeous kitchen and spacious adjoining dining area are visually connected to the great room. The master suite is privately separated from the other two bedrooms. It includes an 11-0 high tray ceiling, large walk-in closet and bath with a separate tub and shower. The two other bedrooms each have a walk -in closet and share a jack and jill bath. There is a large second floor bonus space an optional walk-out basement is available.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $695
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $995
Immediate Delivery!
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,105
Five printed sets of house plans

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,180
Eight printed sets of house plans

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,895
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$995
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,826 Sq. Ft.
Main Level:
1,826 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
1
Half Baths:
General House Information
1
Number of Stories:
72' 4"
Width:
46' 8"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
454 Sq. Ft.
Garage:
255 Sq. Ft.
Porch:
560 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
2
Garage Size:
Exterior Style
Craftsman
Lake
Ranch
Collections
Affordable
Empty Nester
Exclusive
First Home
North Carolina
Old House Classics
Open Floor Plan
Foundation
Basement
Crawl Space
Slab Foundation
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
9
Primary:
12
Secondary:
Roof Load
30
Live:
10
Dead:
Insulation (R)
Per IRC Climate Zones
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
22' 0"
Maximum House Height:
Facade
OwnersChoice
Key Features
Attached
Basement
Country Kitchen
Covered Front Porch
Covered Rear Porch
Crawlspace
Daylight Basement
Dining Room
Double Vanity Sink
Fireplace
Foyer
Great Room
Laundry 1st Fl
Primary Bdrm Main Floor
Mud Room
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Slab
Split Bedrooms
Storage Space
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walkout Basement
Workshop
