House Plan: DFD-9290

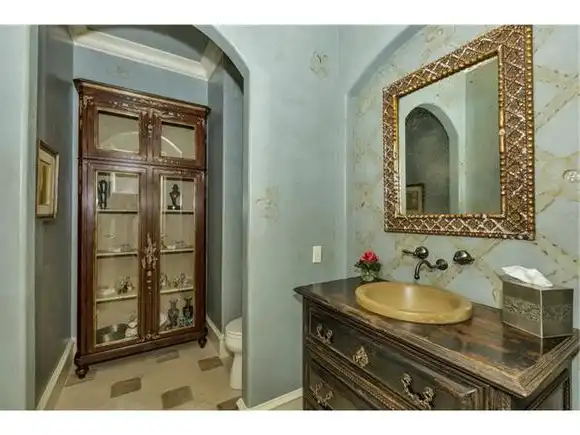

See All 27 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
7,354
BEDS
5
BATHS
5.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $2,800.75
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9290:

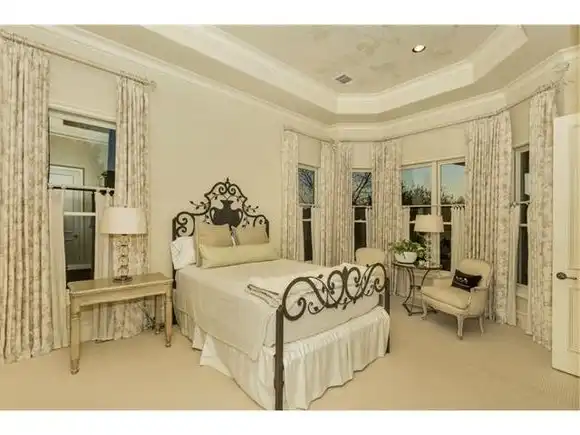

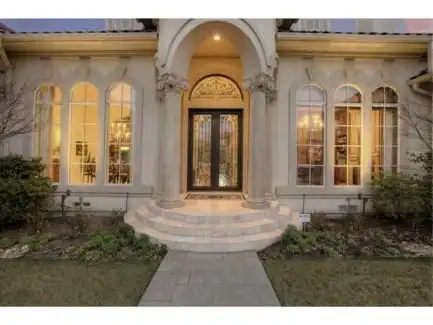

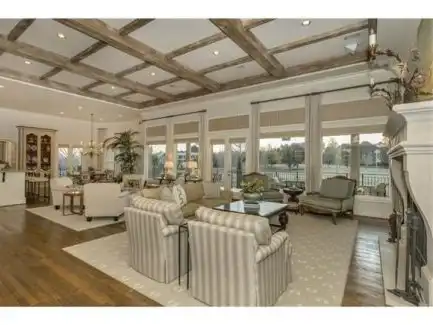

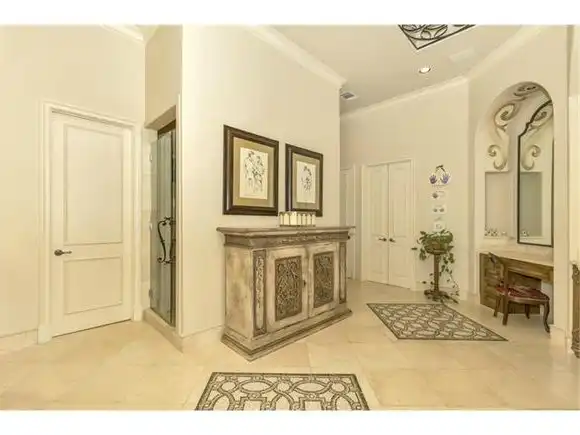

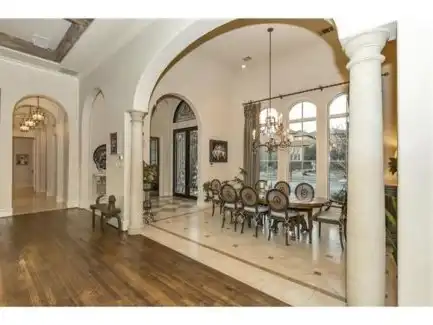

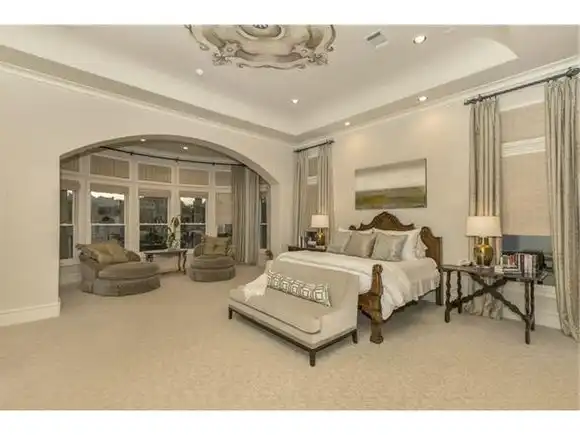

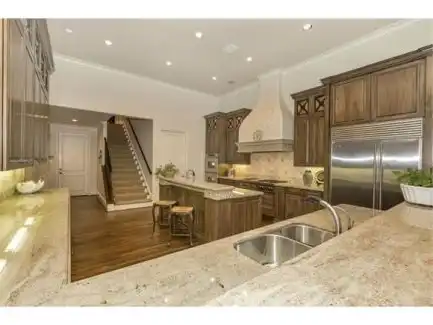

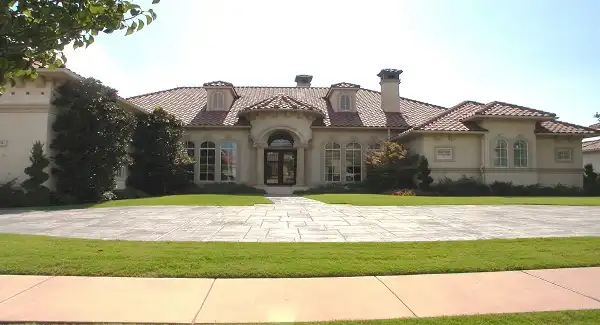

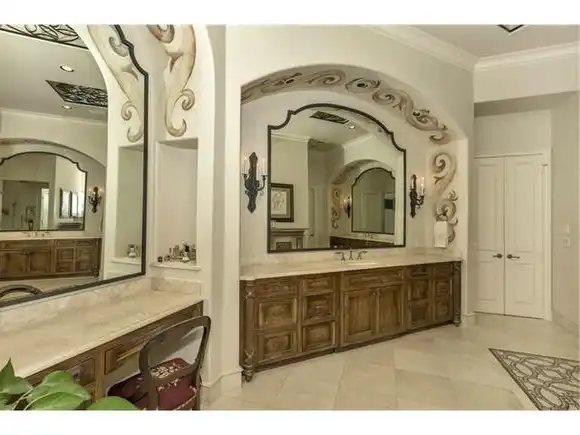

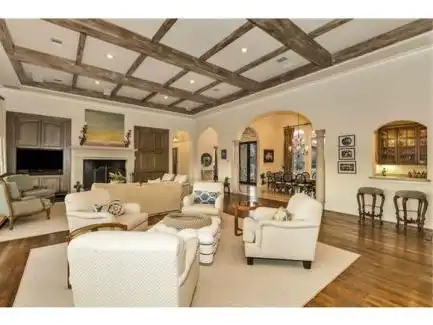

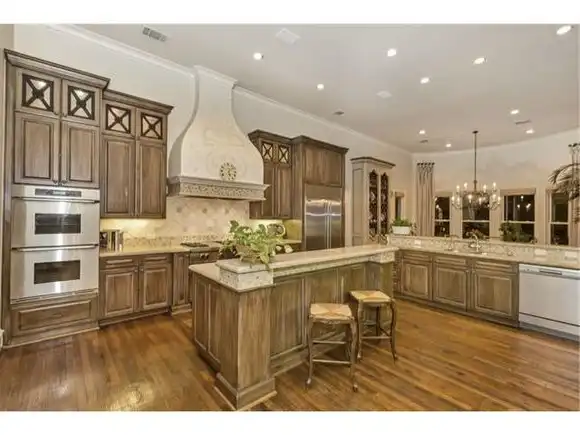

This beautiful Tuscan mansion will bring your search for the best house plan to an end. The two-story barrel vaulted foyer is greeted by the quiet study with coffered ceiling and warming fireplace and the formal dining room with access to the wine bar, butlery and kitchen for ease in serving. The gathering area consists of the kitchen, breakfast area and family room. The family room's two-way fireplace with the den is flanked with built-ins. The large bank of windows allows the sun to stream through to brighten your days. The gourmet kitchen offers a generous island for extra counter space and a breakfast bar that can be shared with the family room and breakfast area. A guest suite with bayed window sitting area, walk-in closet and full bath sits quietly at the back of this luxury house plan. The luxurious master suite boasts a bayed window sitting area, trey ceiling, lavish master bath with his and hers vanities, separate shower, whirlpool, and a large wardrobe with built-in cedar closets. A den with many built-ins and veranda access sits between the family room and master suite. The three-car garage with courtyard entry completes this level of this luxury mansion. The terrace level below offers a game room, three family bedrooms with walk-in closets and full baths, storage and access to the outdoor lounge and terrace, completing this Tuscan luxury mansion house plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $3,365
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $3,545
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $5,050
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$3365
FREE SHIPPING

Note: Note:Foundation is a combination slab and walk-out basement.

Plan Details
See All Details
Finished Square Footage
4,888 Sq. Ft.
Main Level:
546 Sq. Ft.
Upper Level:
1,920 Sq. Ft.
Lower Level:
7,354 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
3
Half Baths:
General House Information
1
Number of Stories:
113' 0"
Width:
100' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
857 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Mediterranean
Spanish
Tuscan
Collections
Luxury
Foundation
Crawlspace
Slab
Walkout Basement
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
8
Primary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
12
First Floor Ceiling:
9
Second Floor Ceiling:
34' 0"
Maximum House Height:
Key Features
Attached
Butler's Pantry
Crawlspace
Dining Room
Family Room
Foyer
Front Porch
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Rear Porch
Side-entry
Sitting Area
Slab
Split Bedrooms
Walk-in Closet
Walkout Basement
Wine Cellar
