House Plan: DFD-9398

Pin It

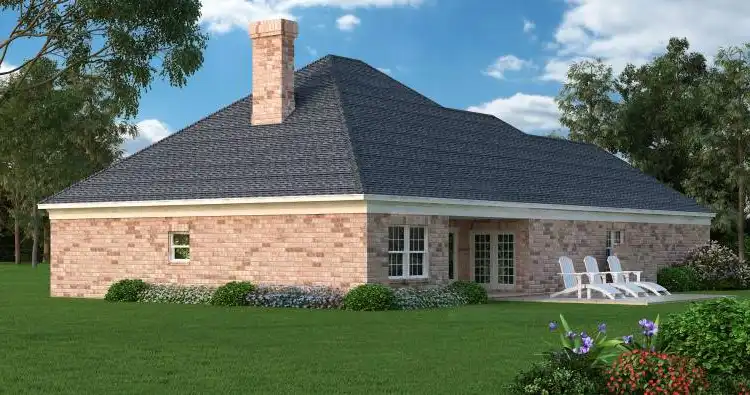

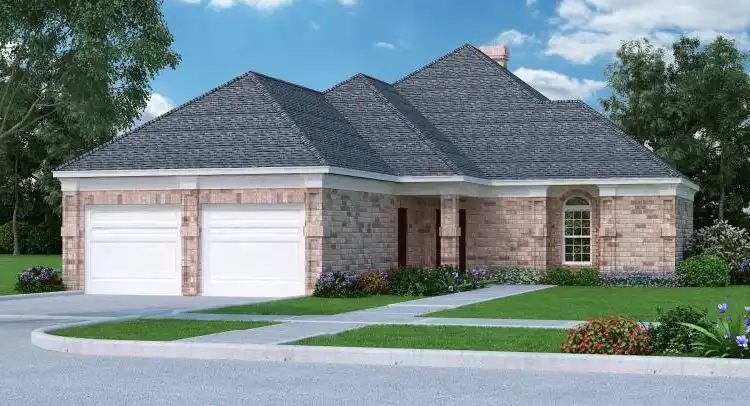

See All 2 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,928
BEDS
2
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $800.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9398:
This Traditional Ranch is designed for narrow lots, this patio home is a super energy saver featuring 2x6 exterior walls insulated doors and windows, 12 attic insulation and many other features. Designed for optimum value, the energy efficient features cost very little, but will save up to 50% in heating and cooling cost. The layout is efficient with two large bedrooms each with a large bathroom. The kitchen is a cooks delight and features a large walk-in pantry. The den is bathed in natural light from the large area of glass that flank each side of the room. Other den features include a brick wood burning fireplace and a raised ceiling with exposed beams.
House Plan Pricing
STEP 1 Select Your Package

PDF Bid Set

Home plans stamped "NOT FOR CONSTRUCTION" for cost estimating and bidding purposes only; a minimum 5 set plan package must be purchased within 90 days for a license to build plan set; a credit will be applied towards your house plan upgrade

PDF Bid Set $800
Immediate Delivery!
Digital set of plans for bidding purposes only

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,000
Immediate Delivery!
Most recommended package

4 Printed Sets

Four printed sets of construction drawings shipped and received in 3-5 business days

4 Printed Sets $1,085
Four printed sets of house plans

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,130
Five printed sets of house plans

8 Printed Sets + PDF

Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS eight printed sets shipped and delivered 3-5 business days.

8 Printed Sets + PDF $1,240
Immediate Delivery!
Digital plans plus 8 printed sets

8 Printed Sets

Eight Printed Sets of Construction Drawings, typically 24” x 36” documents, with a license to construct a single residence shipped to your physical address. PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, bank/mortgage reps, material stores, decorators and more.

8 Printed Sets $1,240
Eight printed sets of house plans

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,900
2D electronic editable computer files
STEP 2 CHOOSE YOUR FOUNDATION
STEP 3 OPTIONAL ADD-ONS
Subtotal
$1000
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,928 Sq. Ft.
Main Level:
1,928 Sq. Ft.
Total:
Room Details
2
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
46' 0"
Width:
76' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
484 Sq. Ft.
Garage:
48 Sq. Ft.
Storage:
300 Sq. Ft.
Porch:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Ranch
Southern
Traditional
Collections
Affordable
Old House Classics
PDFs Fast!
Foundation
Concrete Slab Foundation
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
9/12
Primary:
Insulation (R)
19
Exterior Wall:
0
Interior Wall:
38
Ceiling:
19
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
26' 0"
Maximum House Height:
Facade
Brick
Key Features
Attached
Covered Front Porch
Dining Room
Double Vanity Sink
Fireplace
Formal LR
Foyer
Front Porch
Laundry 1st Fl
Primary Bdrm Main Floor
Rear Porch
Separate Tub and Shower
Slab
Suited for narrow lot
Walk-in Closet
Walk-in Pantry
