House Plan: DFD-9644

See All 39 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,894
BEDS
4
BATHS
3.5
STORIES
1
CARS
3
HOUSE PLANS SALE
START AT  $1,062.50
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9644:

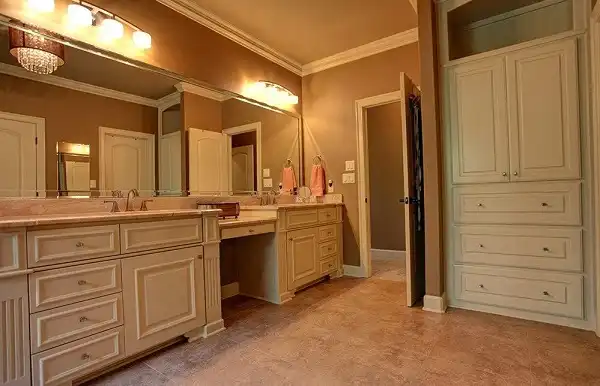

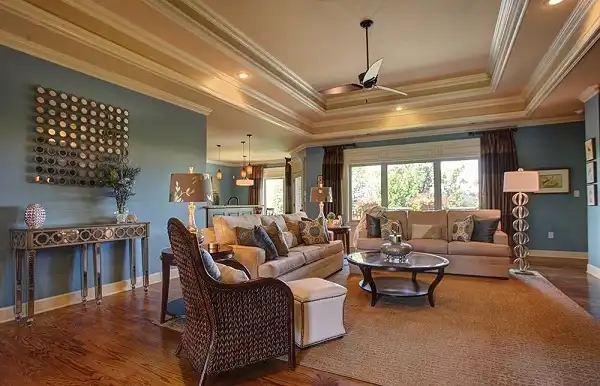

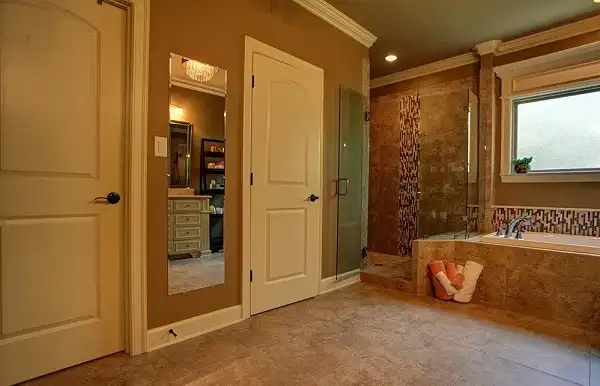

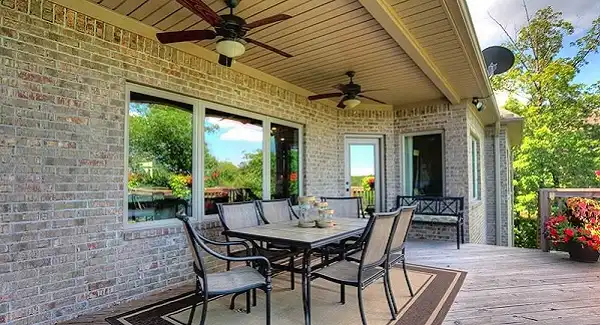

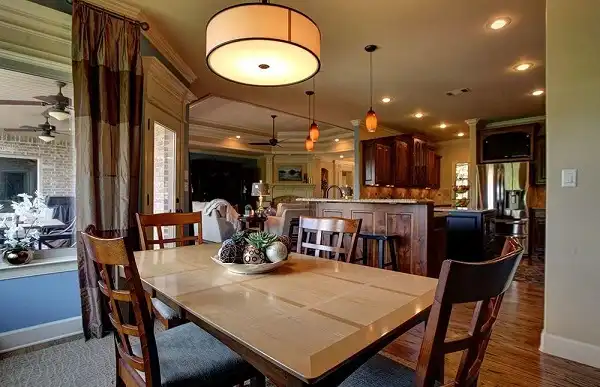

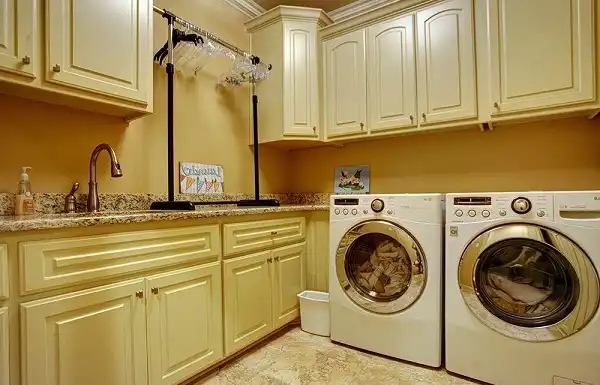

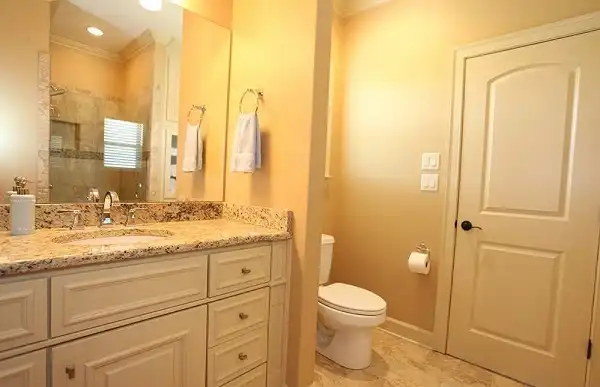

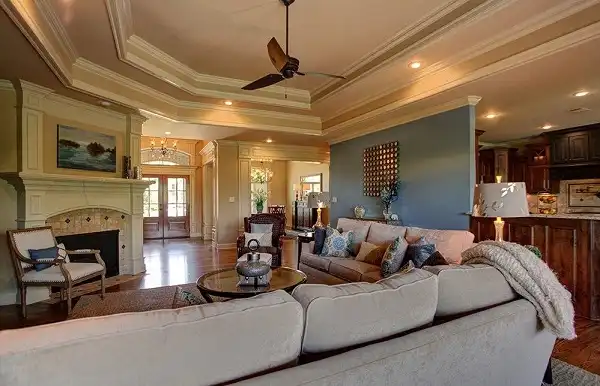

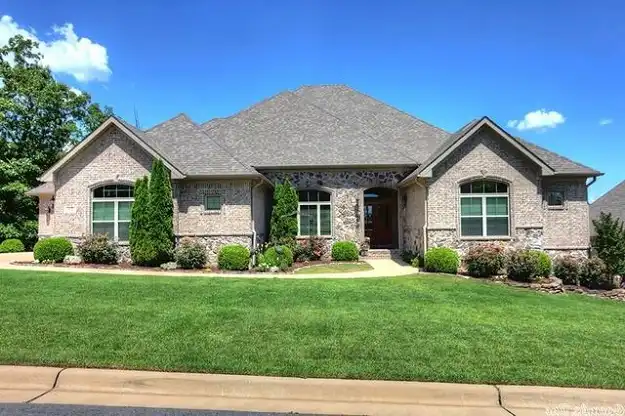

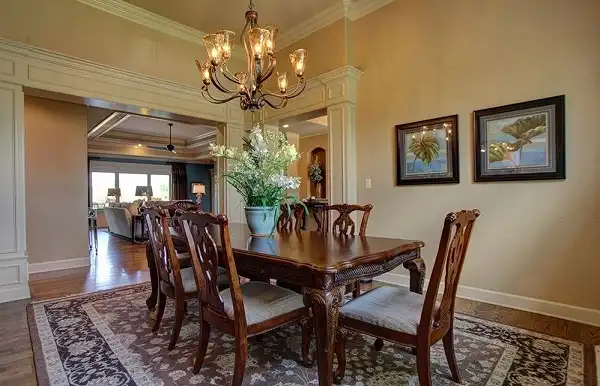

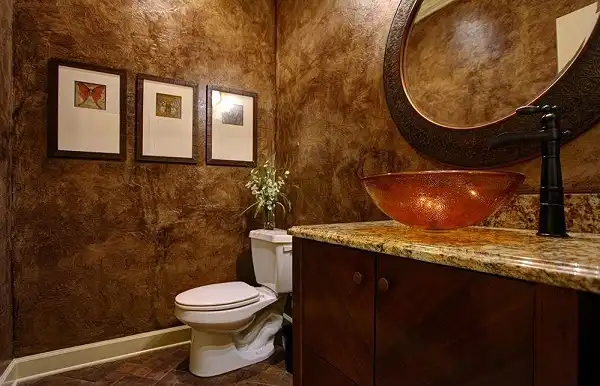

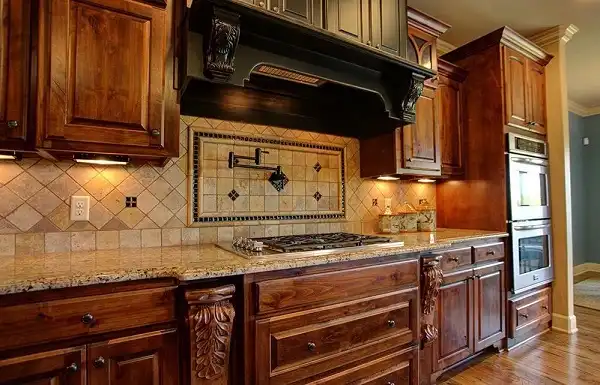

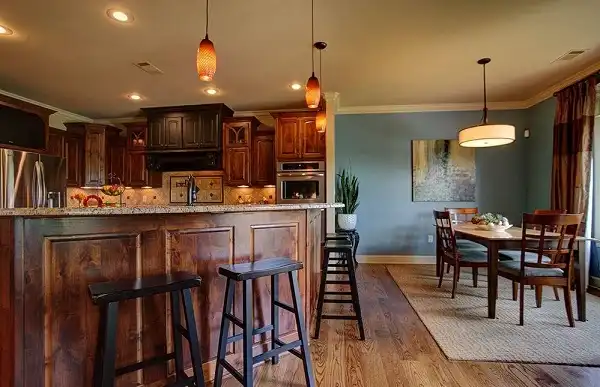

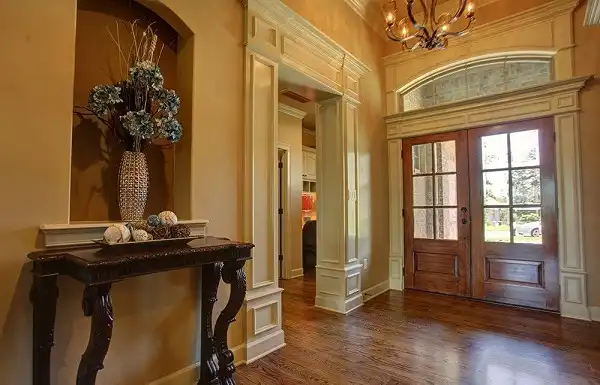

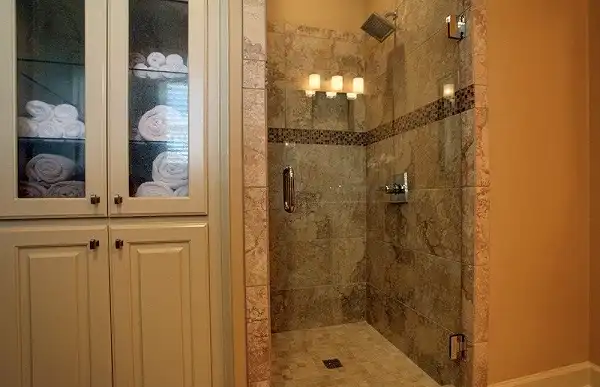

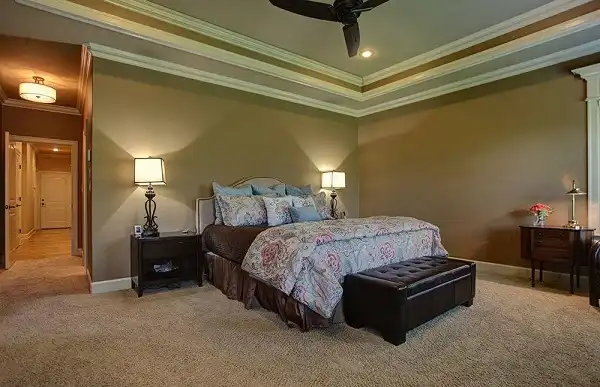

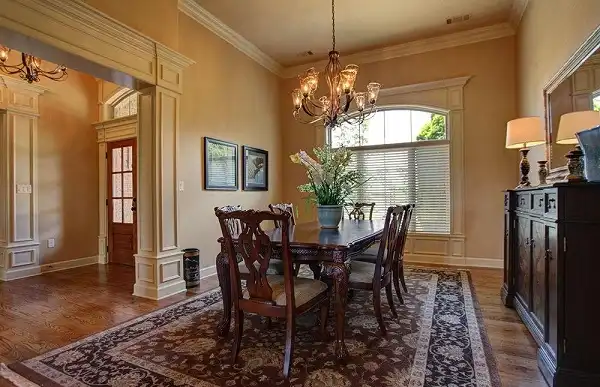

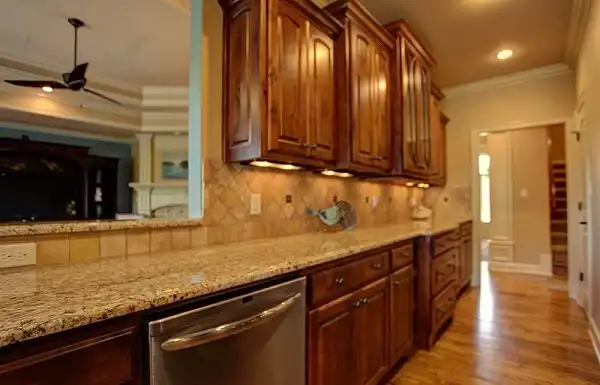

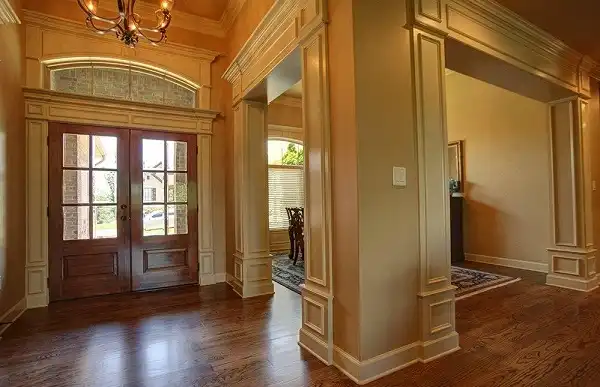

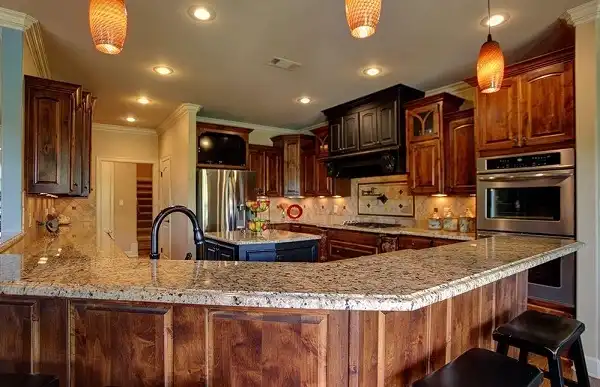

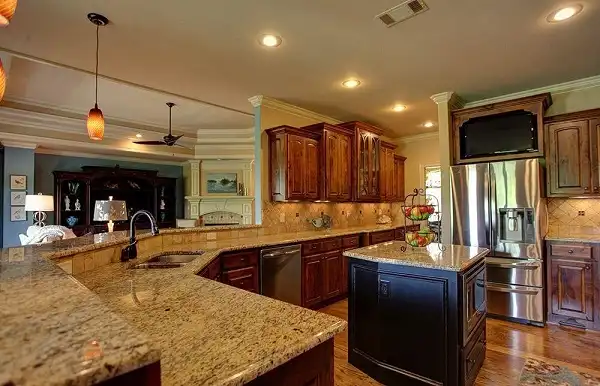

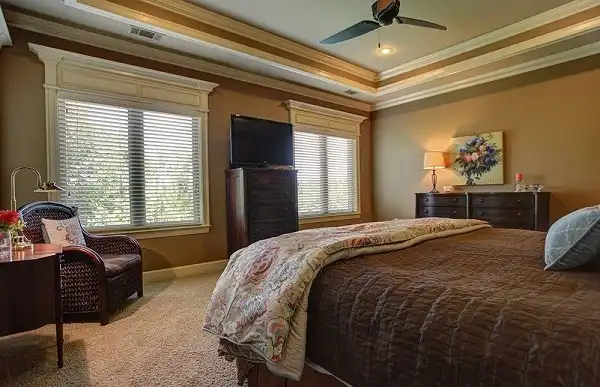

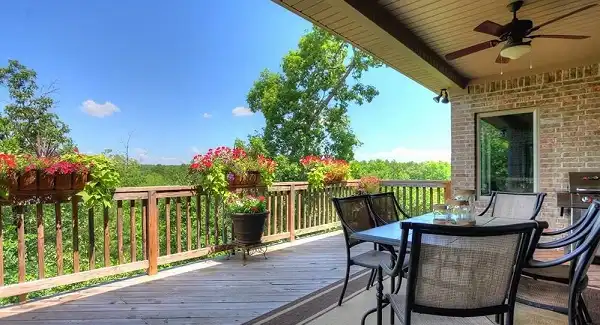

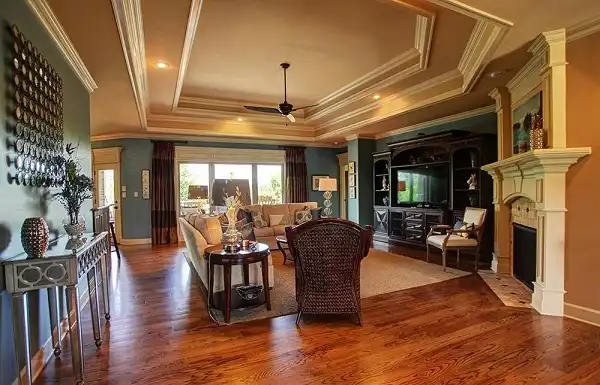

Cimarec is a ranch-style luxury house plan featuring brick and slate exterior with a one and two-car garage and a covered front porch and rear patio. The foyer is just through the double French doors, in between the family bedrooms and dining room. The kitchen, butlery, and pantry are accessible from the dining area, making serving family and guest meals an easy feat. The stair to the second floor is off the dining room with a powder room conveniently placed at the base. Access the garages and utility room from this side of the house. Down the hall is the luxurious master suite with trey ceiling and master bath boasting his and hers vanities, separate shower and garden tub, and a large wardrobe with built-ins. The wardrobe connects to the utility room, making handling laundry convenient. Centrally located is the large family room with trey ceiling and corner fireplace, with views through the wall of windows to the covered patio. The morning room and gourmet kitchen sit off the family room and offer a wide open feeling. The gourmet kitchen offers granite counter tops, modern, state-of-the-art appliances, recessed lighting, a free-standing center island, and a large curved breakfast bar that serves as a seamless separation between the kitchen, morning room and family room. Windows in the morning room offer views to the back yard and covered patio, and allow the sun to shine in and brighten your way. The left side of this elegant house plan hold the family bedrooms. At the front are two family bedrooms with large walk-in closets that share a Jack-and-Jill bathroom. Between these rooms in the hall is a large built-in desk area. Down the hall is a third family bedroom with large walk-in closet and bathroom that can access the quiet study. This room could double as a guest room or in-law suite. Access from the study to the covered patio can make this a wonderful room for the in-laws. Upstairs, a powder room shares space with the media room and completes this elegant luxury house plan.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,125
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,305
Five printed sets of house plans

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $1,670
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1125
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,484 Sq. Ft.
Main Level:
410 Sq. Ft.
Lower Level:
3,894 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
2
Half Baths:
General House Information
1
Number of Stories:
77' 0"
Width:
71' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
850 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
3
Garage Size:
Exterior Style
Ranch
Southern
Traditional
Collections
Luxury
Foundation
Basement
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
8
Second Floor Ceiling:
33' 0"
Maximum House Height:
Key Features
Attached
Basement
Butler's Pantry
Covered Rear Porch
Dining Room
Family Room
Foyer
Front-entry
Home Office
Kitchen Island
Laundry 1st Fl
Nook / Breakfast Area
Separate Tub and Shower
Side-entry
Slab
