House Plan: DFD-9658

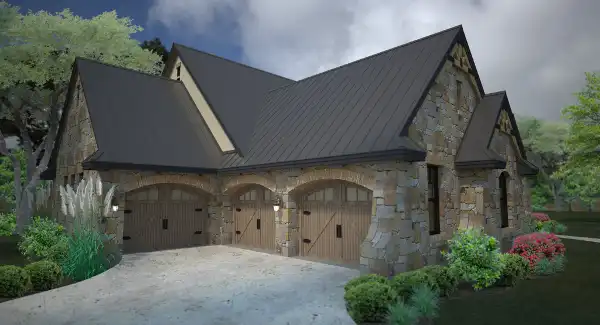

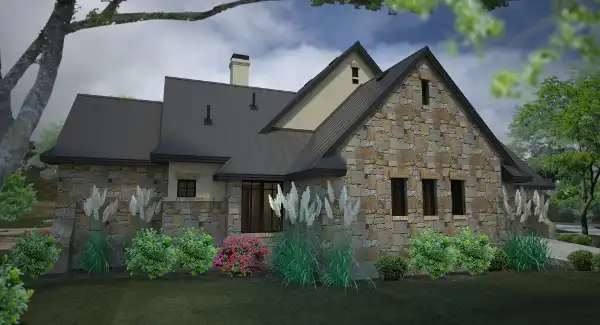

See All 11 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
3,880
BEDS
4
BATHS
3
STORIES
1.5
CARS
3
HOUSE PLANS SALE
START AT  $1,276.00
For questions and help, live chat, email or call us at 877-895-5299
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9658:

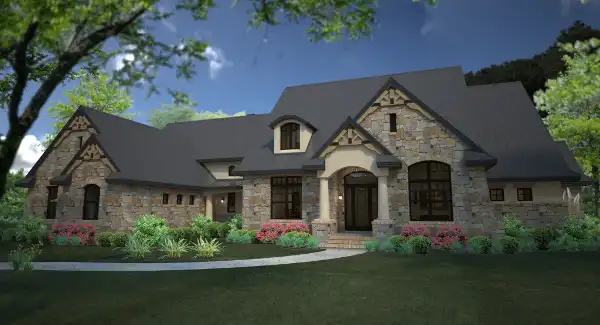

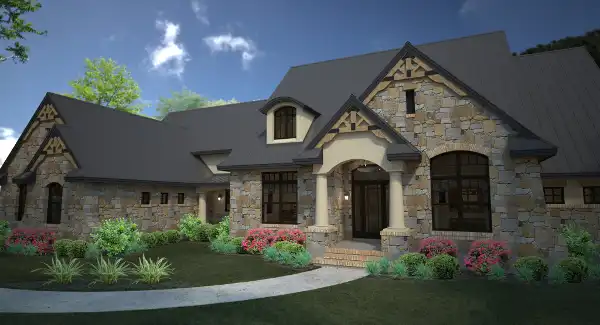

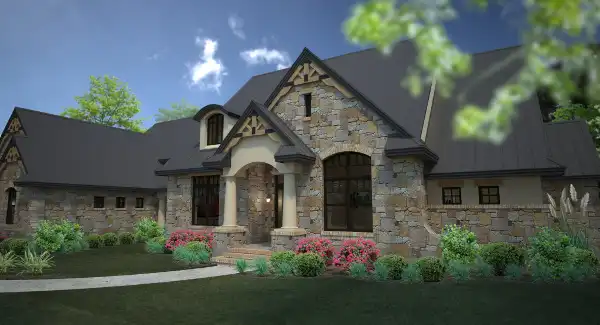

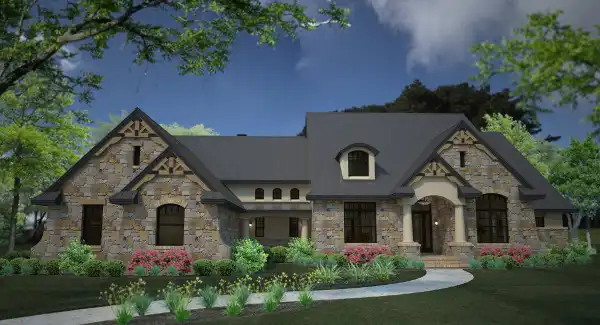

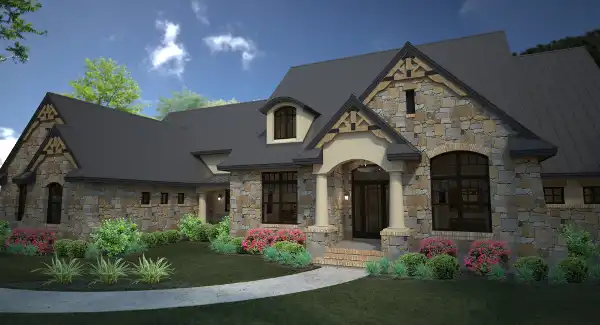

This home is tastefully creative on every side via the stone and stucco facade which includes stucco
columns and arches as well as an elegant metal roof.

The foyer gives way to a curved stair and rotunda that is open to the bonus spaces above which can
be finished out as the owners imagination and needs warrant.

A large dining room is flanked by arches and enjoys a butler pantry connecting it to the kitchen.
The kitchen includes a large island with veggie sink, a commercial oven and a walk-in-pantry.

The study doubles as a guest room and shares a Hollywood bath arrangement with the middle bedroom.
Both secondary bedrooms have large walk-in-closets and the rear bedroom shares a pool bath which is
also the guest bath.

The family and Kitchen share a 15' ceiling which is stepped over the family giving definition and
depth to that space. Large expanses of window bring plenty of natural light into the room.

The large utility area includes washer/dryer, freezer space, sink and folding counters.

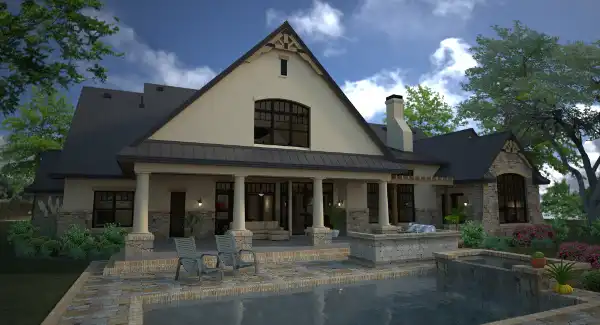

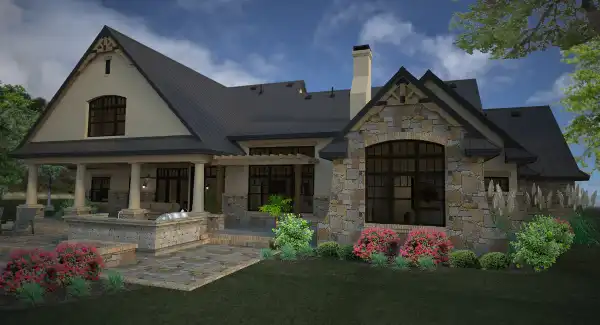

The master suite is flooded with natural light from the large arched windows on the rear of the home
and french doors through the trellis and to the lanai. The master bath area includes a formal over-
sized tub with large window and a walk-in shower. The dressing areas provide ample space and adjoin
a large walk-in closet with center island.

A den is accessible to the family areas via sliding barn doors and is flexible to be used either as
a bedroom or entertaining/media/game space. The den also open via sliding french doors to a large
lanai.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build


Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,595
Immediate Delivery!
Most recommended package

5 Printed Sets


Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $1,745
Five printed sets of house plans

5 Printed Sets + PDF


Digital plan emailed to you in PDF format that allows for printing copies on a home printer or local print shop and sharing with contractors, subs, decorators, and more. PLUS five printed sets shipped and delivered 3-5 business days.

5 Printed Sets + PDF $1,845
Immediate Delivery!
Digital plans plus 5 printed sets

CAD Single Build


2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,395
2D electronic editable computer files

CAD Unlimited Build


2D electronic computer files, completely editable, for design professional use when making extensive modifications; multi-license allows unlimited builds

CAD Unlimited Build $2,790
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1595
FREE SHIPPING

Plan Details
See All Details
Finished Square Footage
3,880 Sq. Ft.
Main Level:
3,880 Sq. Ft.
Total:
Room Details
4
Bedrooms:
3
Full Baths:
General House Information
1.5
Number of Stories:
109' 9"
Width:
77' 1"
Depth:
Single
Dwelling Number:
2nd Floor
Bonus Access:
Unfinished Square Footage
995 Sq. Ft.
Garage:
1040 Sq. Ft.
Porch:
1742 Sq. Ft.
Bonus Room:
GARAGE
Side
Garage Location:
3
Garage Size:
Exterior Style
European
Ranch
Southwest
Collections
Builders
Luxury
Open Floor Plan
Outdoor Living
Split Bedroom
Foundation
Basement
Crawl Space
Slab
Walk-out Basement
Framing Information
Stick
Roof Framing:
2x6
Exterior Wall Framing:
Roof Pitch
12/12
Primary:
4:12
Secondary:
3:12
Porch:
Roof Load
20
Live:
15
Dead:
15
Wind:
Insulation (R)
19
Exterior Wall:
15
Interior Wall:
30
Ceiling:
0
Floor:
House And Ceiling Heights
10'/11'/15
First Floor Ceiling:
10'
Second Floor Ceiling:
34' 3"
Maximum House Height:
Key Features
2 Story Volume
Arches
Basement
Bonus Room
Butler's Pantry
Covered Front Porch
Covered Rear Porch
Crawlspace
Dining Room
Double Vanity Sink
Family Room
Fireplace
Front Porch
Guest Suite
Home Office
Kitchen Island
Laundry 1st Fl
Library/Media Rm
Loft / Balcony
Primary Bdrm Main Floor
Nook / Breakfast Area
Open Floor Plan
Peninsula / Eating Bar
Rear Porch
Rec Room
Separate Tub and Shower
Slab
Split Bedrooms
Storage Space
Suited for corner lot
Suited for sloping lot
Suited for view lot
Unfinished Space
Vaulted Ceilings
Walk-in Closet
Walk-in Pantry
Walkout Basement
