House Plan: DFD-9764

Pin It
See All 22 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
5,135
BEDS
5
BATHS
5.5
STORIES
3
CARS
2
HOUSE PLANS SALE
START AT  $1,936.00
For questions and help, live chat, email or call us at 877-895-5299
First Floor
Second Floor
Third Floor
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9764:

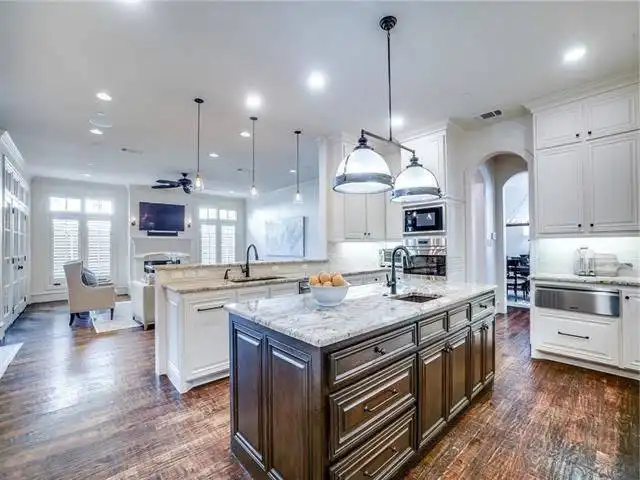

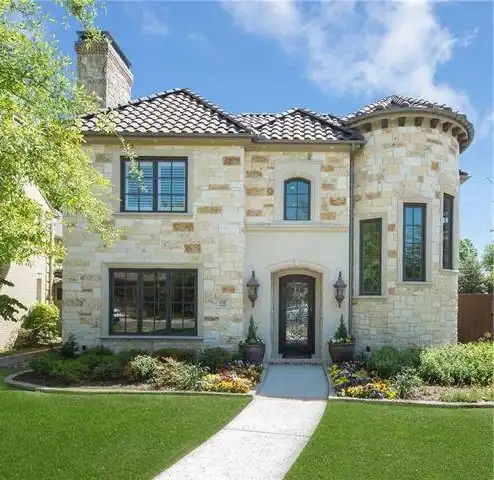

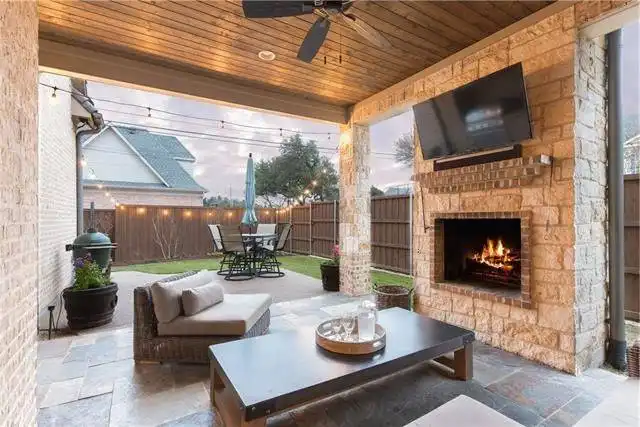

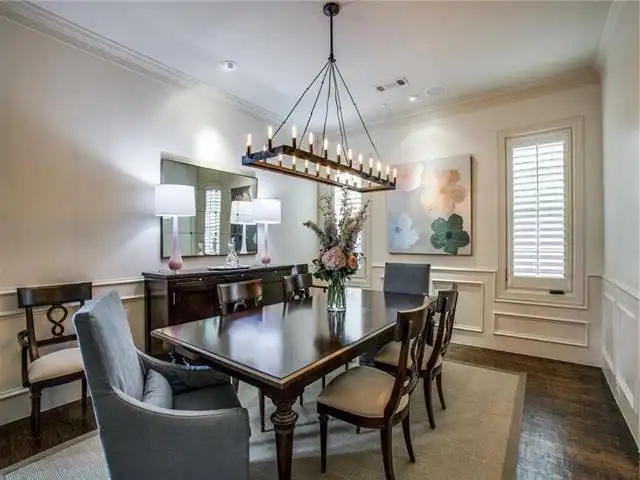

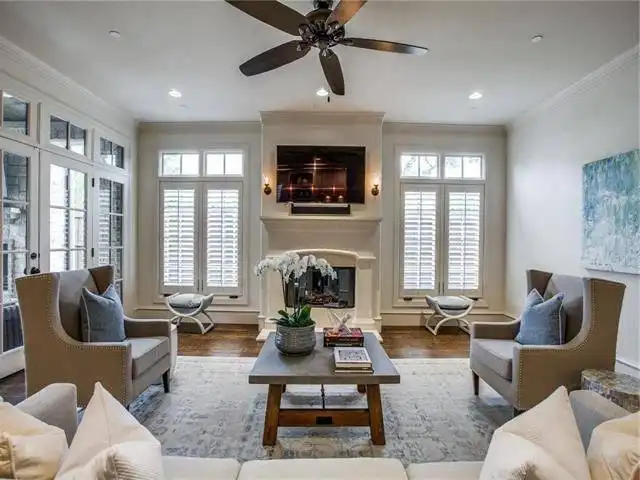

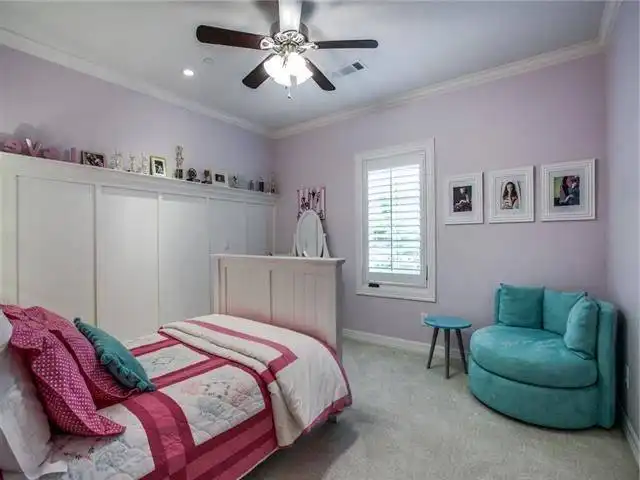

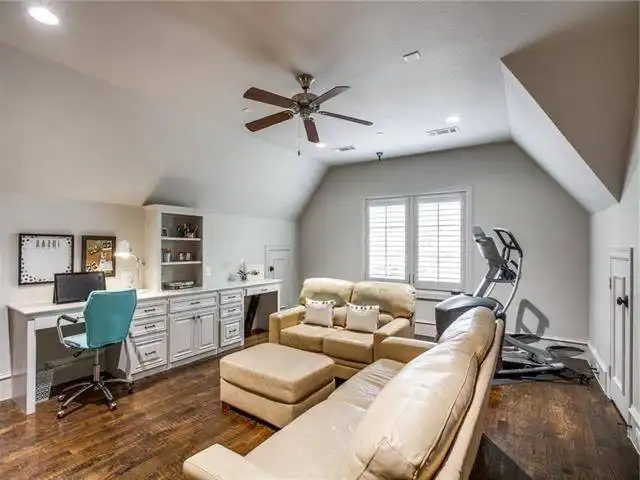

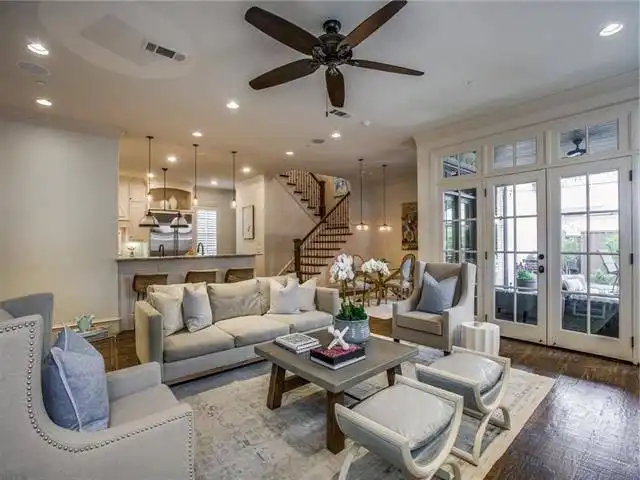

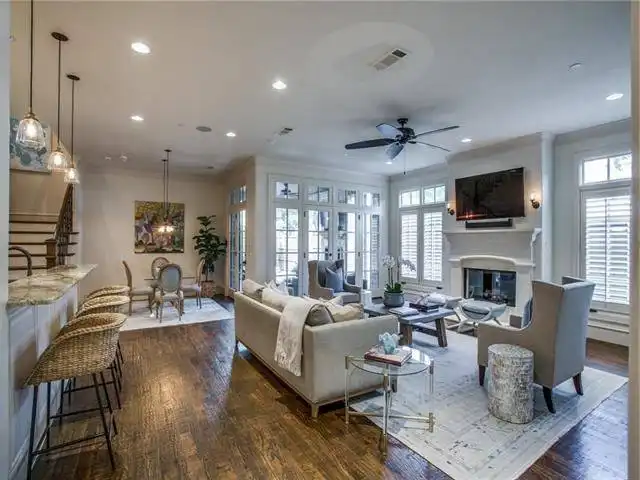

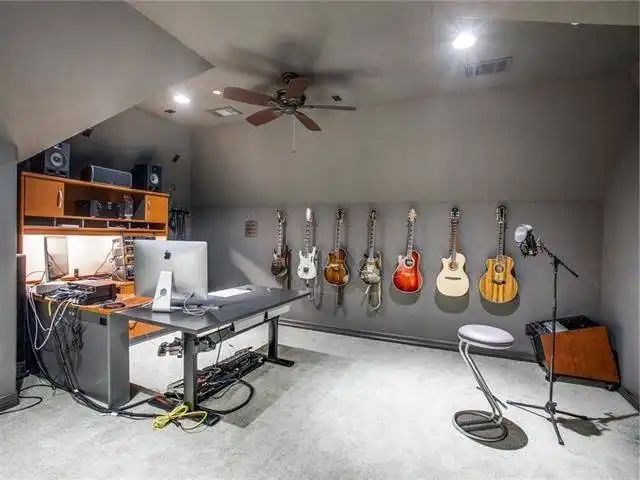

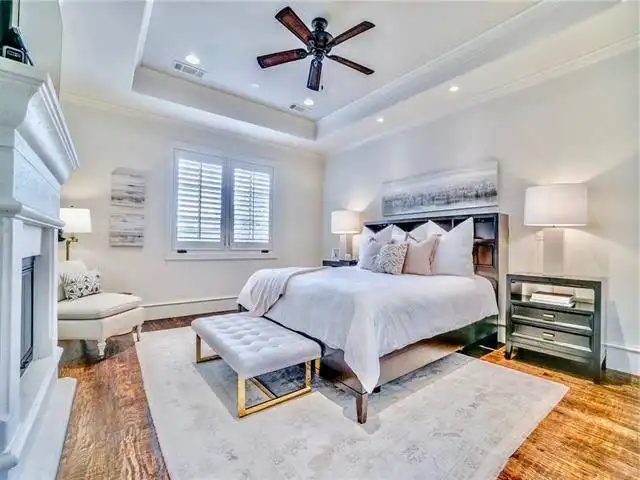

Arches, curves and stone add flair to this five-bedroom Mediterranean design featuring 5,125 s.f. On the interior, the living and dining rooms are formal and classic. Guests will be pleased to occupy the bedroom suite on this level. The family room offers easy access to a covered porch. The family chef will adore the modern kitchen, with its nearby pantry and wet bar. On the second floor, the master suite is simply fantastic! On the third floor, the versatile game room incorporates a bar for refreshing beverages.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $2,180
Most recommended package

5 Printed Sets

Five Printed Sets of Residential Construction Drawings are typically 24” x 36” documents and come with a license to construct a single residence shipped to a physical address. Keep in mind PDF Plan Packages are our most popular choice which allows you to print as many copies as you need and to electronically send files to your builder, subcontractors, etc.

5 Printed Sets $2,360
Five printed sets of house plans

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $3,270
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$2180
FREE SHIPPING

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
2,311 Sq. Ft.
Main Level:
2,486 Sq. Ft.
Upper Level:
338 Sq. Ft.
Third Level:
5,135 Sq. Ft.
Total:
Room Details
5
Bedrooms:
5
Full Baths:
2
Half Baths:
General House Information
3
Number of Stories:
40' 0"
Width:
84' 0"
Depth:
Single
Dwelling Number:
Unfinished Square Footage
496 Sq. Ft.
Garage:
GARAGE
Rear
Garage Location:
2
Garage Size:
Exterior Style
Mediterranean
Spanish
Collections
Luxury
Foundation
Slab
Framing Information
Stick
Roof Framing:
2x4
Exterior Wall Framing:
Roof Pitch
12
Primary:
7
Secondary:
Insulation (R)
0
Exterior Wall:
0
Interior Wall:
0
Ceiling:
0
Floor:
House And Ceiling Heights
10
First Floor Ceiling:
9
Second Floor Ceiling:
35' 0"
Maximum House Height:
Key Features
Attached
Dining Room
Family Room
Formal LR
Home Office
Kitchen Island
Laundry 2nd Fl
Nook / Breakfast Area
Rear-entry
Separate Tub and Shower
Slab
