House Plan: DFD-9843

Pin It

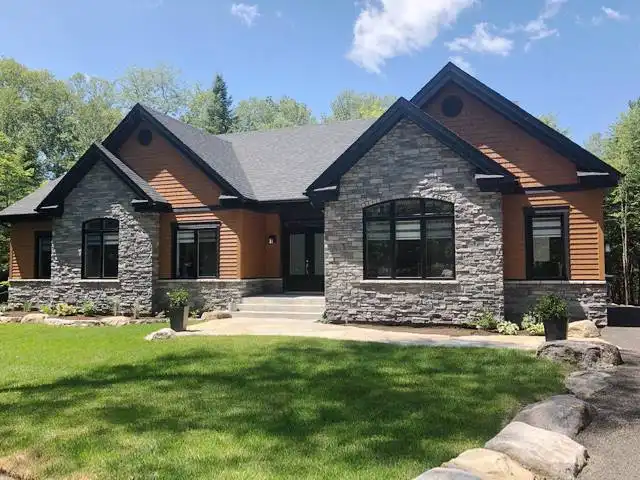

See All 4 Photos > (photographs may reflect modified homes)
© copyright by designer
SQ FT
1,883
BEDS
3
BATHS
2
STORIES
1
CARS
2
HOUSE PLANS SALE
START AT  $1,284.00
For questions and help, live chat, email or call us at 877-895-5299
1st Floor Plan
Floor Plans
Click to Zoom In on Floor Plan

About House Plan 9843:

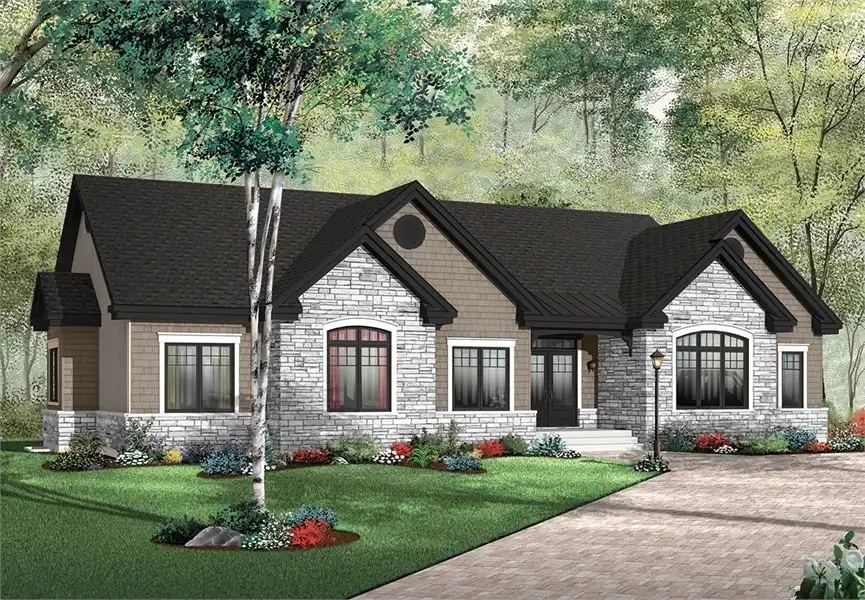

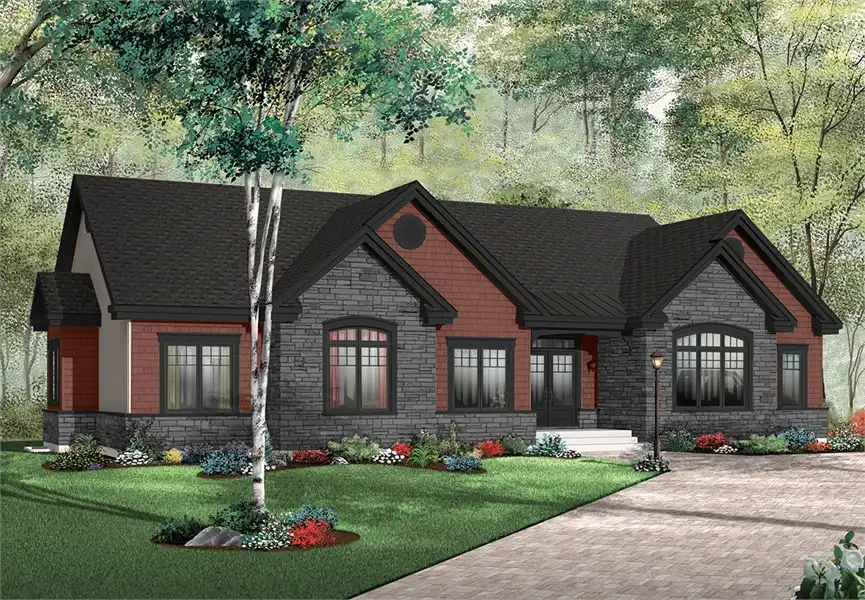

Gables and arches lend a Craftsman feel to this one-story beauty. Off the foyer, a home office enjoys a quiet location. If you like to entertain guests, you'll appreciate the open layout of the island kitchen, dining area and family room. A garden tub is the highlight of the secluded master suite. Two more bedrooms share a split bath.
House Plan Pricing
STEP 1 Select Your Package

PDF Single Build

Digital plans emailed to you in PDF format that allows for printing copies and sharing electronically with contractors, subs, decorators, and more. This package includes a license to build the home one time.

PDF Single Build $1,605
Most recommended package

3 sets + PDF

Please allow 3-5 days for delivery
3 sets + PDF $1,740
3 sets + PDF

CAD Single Build

2D electronic computer files, completely editable, for design professional use, when making extensive modifications or in the event engineering is required in the area where you are building.

CAD Single Build $2,605
2D electronic editable computer files
STEP 2 Need To Reverse This Plan?
STEP 3 CHOOSE YOUR FOUNDATION
STEP 4 OPTIONAL ADD-ONS
Subtotal
$1605
FREE SHIPPING
Please allow 3-5 business days for delivery of this plan Please check our PDFs NOW collection for plans that can be downloaded and received immediately or live chat us to help you find a similar plan available now.

Detailed Plan Packages & Pricing
Our Structural Detail & IRC Guarantee
Architect's Preferred Home Products
Plan Details
See All Details
Finished Square Footage
1,883 Sq. Ft.
Main Level:
1,883 Sq. Ft.
Total:
Room Details
3
Bedrooms:
2
Full Baths:
General House Information
1
Number of Stories:
68' 8"
Width:
41' 8"
Depth:
Single
Dwelling Number:
None
Bonus Access:
Unfinished Square Footage
484 Sq. Ft.
Garage:
GARAGE
Front
Garage Location:
2
Garage Size:
Exterior Style
Country
Craftsman
Ranch
Collections
Accessible
Empty Nester
Mountain
Old House Classics
Open Floor Plan
Outdoor Living
Pet Lovers
Split Bedroom
Vacation
Foundation
Crawlspace
Full Unfinished Basement (included)
Monolithic slab
Framing Information
Truss
Roof Framing:
2x6
Exterior Wall Framing:
Roof Load
55
Live:
20
Dead:
Insulation (R)
25
Exterior Wall:
0
Interior Wall:
40
Ceiling:
0
Floor:
House And Ceiling Heights
9
First Floor Ceiling:
23' 4"
Maximum House Height:
Key Features
Arches
Attached
Basement
Covered Front Porch
Crawlspace
Daylight Basement
Dining Room
Double Vanity Sink
Family Room
Formal LR
Foyer
Front Porch
His and Hers Primary Closets
Home Office
Kitchen Island
Laundry 1st Fl
Primary Bdrm Main Floor
Nook / Breakfast Area
Nursery Room
Open Floor Plan
Peninsula / Eating Bar
Separate Tub and Shower
Side-entry
Sitting Area
Slab
Storage Space
Suited for corner lot
Unfinished Space
Vaulted Ceilings
Walkout Basement
